Customers Order LKS1850 Semi-Automatic Die-Cutting Machine For Die-Cutting Large-Size Corrugated Cardboard

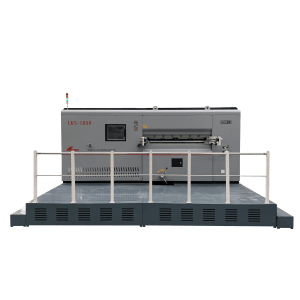

This is the 1850 semi-automatic die-cutting machine that just finished production in December. The customer-selected model does not have the waste removal function.

Advantages of 1850 semi-automatic die cutting machine:

1.Various models within the range and optional feeders can be installed subiect to requirements.
2.Warping sheet will be easy to feed from 1-9 mm of corrugated board.
3.The main drive comprises worm gearand cams on precision crank shaft linkage.
4.Mechanism includes bearing shells toprevent impacting and assures smoothrunning.
5.Quality sourced chains to enhance performance and long life.
Main chain drive with overload feature.
6.Use of high tensile chains for strength and wear resistance.

parameter:

Max. paper size: 1880*1420mm
Min. paper size: 650*550mm
Max. cutting size: 1850*1400mm
Max. cutting pressure: 400T
Max. mechanical speed: 3000s/h
TOtal weight: 27T/30T
Dimension:7640x5280x2600mm

Lukes Machinery is an enterprise that produces and sells die-cutting machines. It has been engaged in the paper processing equipment industry for 15 years. Serving customers in dozens of countries around the world, with a professional technical team.
If you are interested in the 1850 semi-automatic die cutting machine, please log in www.sdlukes.com or send an email: [email protected]
