The Difference Between Flatbed Carton Die Cutting Machine and Roll Die Cutting Machine
Die cutting machine is a necessary equipment in carton processing and production. According to the different needs of users, it can be divided into two types!

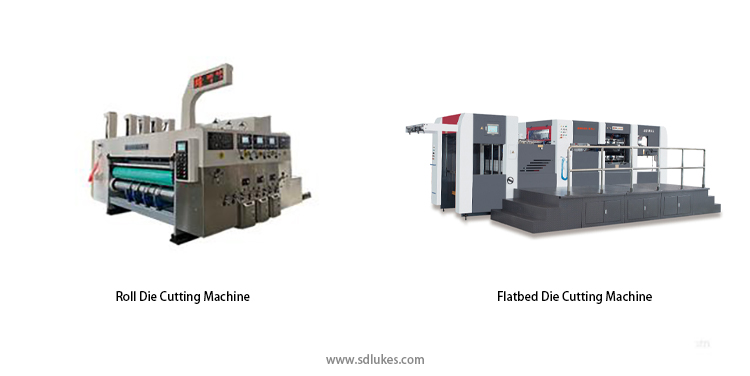

Roll Die Cutting Machine
Its plate table and the working part of the pressing and cutting mechanism are all cylindrical. When the equipment is working, the paper feeding roller sends the cardboard between the die plate roller and the pressure roller, and the two clamp it to die-cut the roller. , the die-cutting plate cylinder rotates once, which is a working cycle.
The Roll die cutting machine uses the roller to complete the die-cutting process with high efficiency. The unique upgrade of the roller ensures the productivity. It is also a lot of choices for small carton factories. The price is low and the efficiency is high. This is also the biggest advantage of the roll die cutting machine!

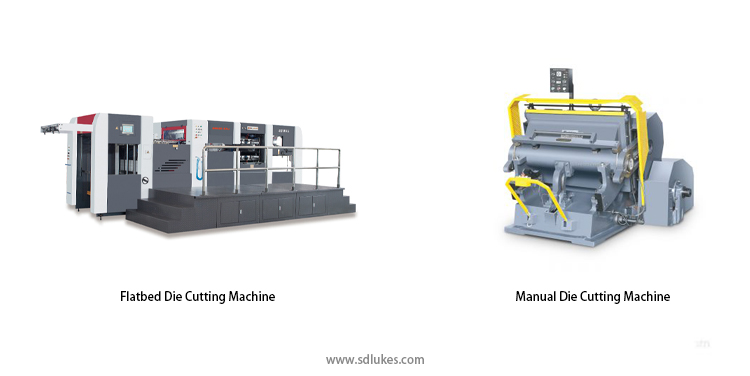

Flatbed Carton Die Cutting Machine
The shape of its plate table and pressing and cutting mechanism are flat. When the plane of the plate table and the pressing plate is in a vertical position, it is a vertical flat die-cutting machine. When the die-cutting machine is working, the pressure plate is pressed to the plate by the transmission to exert pressure on the plate table.
Flatbed carton die cutting machine is divided into main models such as manual flatbed die cutting machine, automatic flatbed all-in-one machine, etc. Its working principle is very easy to understand according to the name, which is to press up and down to process the shape of paper. The manual die-cutting and creasing machine is cheap, but the labor cost is high, which is also the disadvantage of manual flattening. The fully automatic flattening machine has high production efficiency and makes up for the shortcomings of traditional flattening!
Both are used for carton die-cutting and indentation forming. The main difference is two points:
1. Thickness of processed cardboard
Roll die cutting machine can make corrugated cardboard within 2-12mm, suitable for ordinary yellow cowhide watermark box processing! Fast and efficient!
Flatbed carton die cutting machine can process very thin cardboard or cardboard, of course corrugated cardboard can also be done. The color box suitable for lamination will not destroy the lamination effect, and the die-cutting precision is relatively higher!
2. Equipment price and cost of use
The price of Automatic flatbed carton die cutting machine is higher. If you are making color boxes, you can also choose semi-automatic equipment such as manual die-cutting and creasing machines. The effect is the same, but the difference is in the production speed!
To sum up, what suits you is the best, just make a rational choice! Hope to be able to help you!
