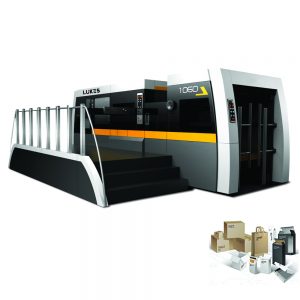

Flatbed Die Cutting Machine Feed Section

In the existing traditional technology, most of the paper feeding and conveying of the Flatbed die cutting machine adopts mechanical transmission, and the paper feeding method is fish-scale overlapping paper feeding. Overlap feeding cannot be achieved. Therefore, the full servo control paper feeding and feeding system solves this problem, not only can realize fish-scale overlapping paper feeding, but also can realize single-sheet paper feeding, and the scope of paper application is no longer limited. In case of serious paper bending, it can also be converted to manual paper feeding.

The Feida drive of the Flatbed die cutting machine is controlled by a servo motor, and the stroke of the suction nozzle is twice that of the ordinary nozzle, and the stroke of the paper transfer is twice that of the ordinary one, which is more suitable for the conveying of corrugated paper.

The flatbed die cutting machine paper feeding belt drive is controlled by servo motor, and the speed is realized from acceleration to uniform speed, and then to deceleration, which solves the damage to the paper caused by the previous simple mechanical control, and is accurate in place.

The camshaft of the feeding part is controlled by a servo motor, and the feeding speed can be adjusted freely through the touch screen.
The lifting and lowering of the feeding frame is controlled by a cylinder, which can be easily achieved by simply turning the knob.
The unique design of the gripper row, using the specially treated teeth structure, can save you 8mm of gripper per piece of paper compared with the needle type.

The front and back are mechanically positioned, and the side installation increases the movable side gauge to improve the processing accuracy of the product.
The castings of the whole machine are made of ductile iron with outstanding mechanical properties and high-grade resin sand casting to ensure the service life of the whole machine.
The double-pitch chain imported from Germany is adopted to ensure stable operation of the machine and improve product accuracy.

Shandong Lukes Machinery is one of the leading brands of flatbed die cutting machines in China. All our service teams are skilled and provide services 24 hours a year. Our goal is to satisfy our customers, make our products and services self-improving, and have professional service staff.
