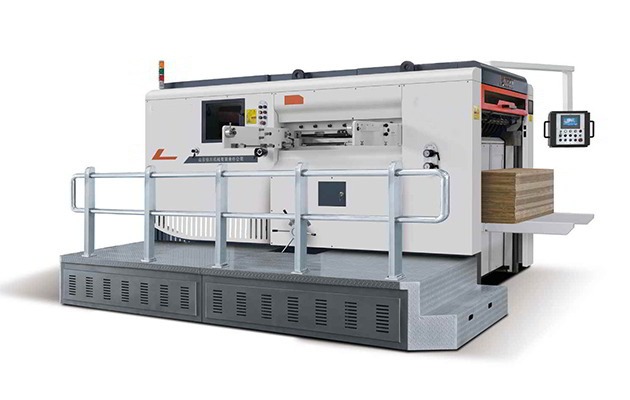

LKS1050 Semi Automatic Die Cutting Machine

Product Description

1050 Semi Automatic Die Cutting Machine can be equipped with a waste removal function, High working efficiency one day can die cut 30000 sheet per day / one or two shift.

Feature:

1. High working efficiency one day can die cut 30000 sheet per day / one or two shift.
2. High safety machine with 17 Photoelectric to ensure machine intelligence and safety operation.
3. It has centerline system and high precision moving plate process to ensure fast setting time and change order.
4. Very good performance to ensure low failure rate.
5. CE certification .
6. Vacuum package to ensure long time sea transport .
7. Die cutting machine core parts base is duty heavy and rich material than other supplier in China.
8. All electrical parts and main parts adopts Germany / Japan first brand in the world.
9. Carton box creasing and die cutting machine mainly suit for offset printing box/ outside carton / flexto printing carton and beer box and transport carton etc.
10. Good and truth raw material with high precision parts processing by rich experience worker assembly.
11. Corrugated carton die cutting machine is mainly die punching duty heavy carton making such as 3ply /5ply / 7 ply corrugated carton sheet .

LKS 1050 Semi automatic die cutting machine by LUKES manufacturer is heavy duty model than market , we are a leading brand with so many years producing experience and win more than 2000 user good comment .

For more information consultation: [email protected]

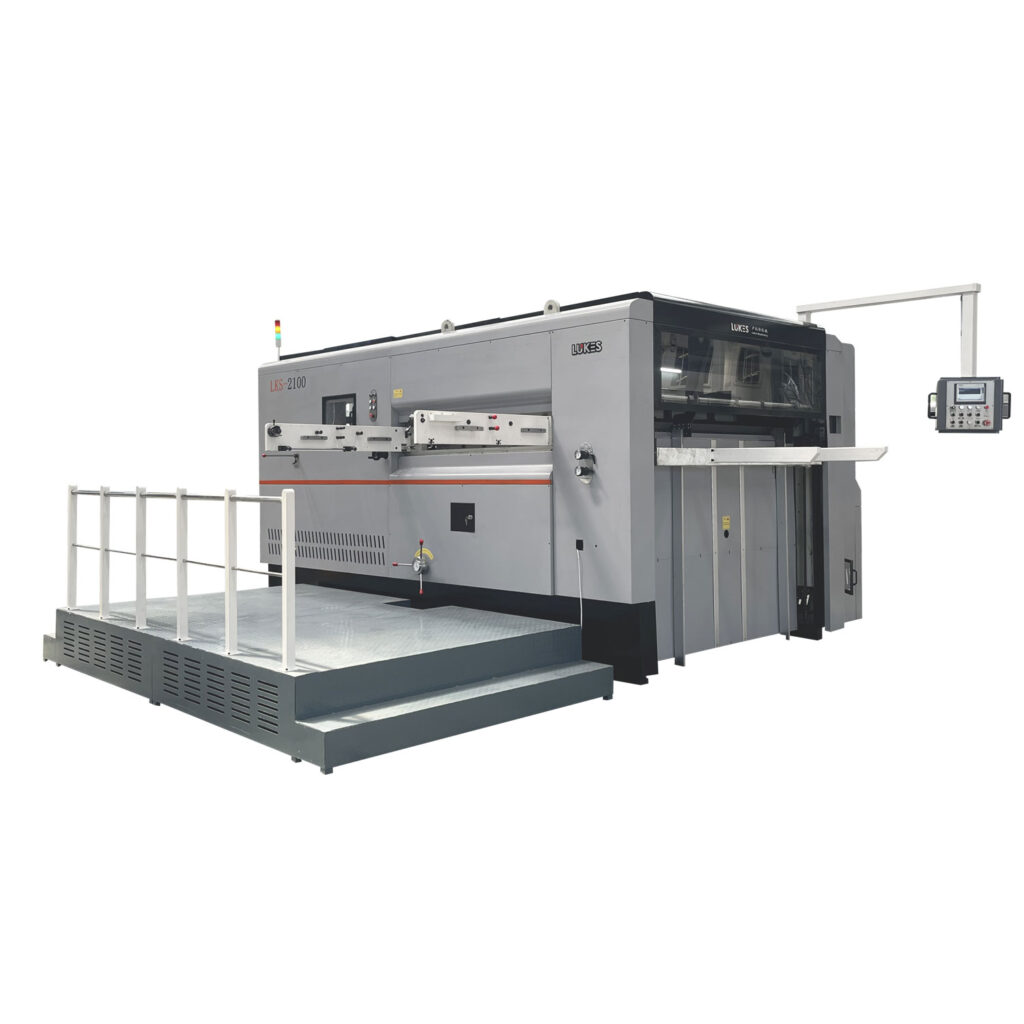

1050 Semi Automatic Die Cutting Machine

Components

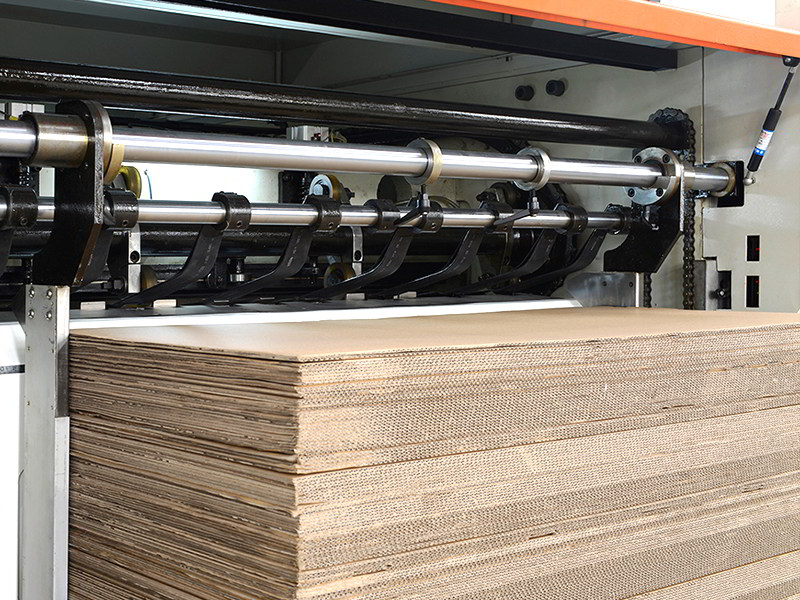

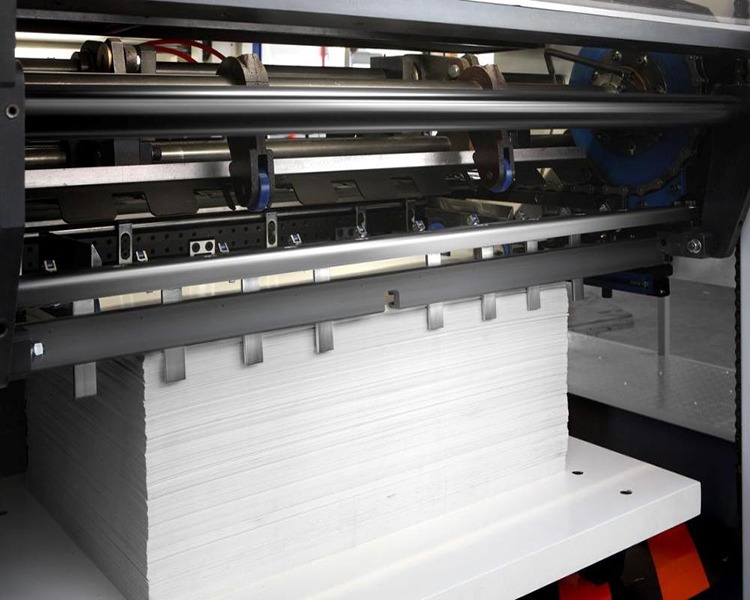

feeding section

Feeding by manual is good for warping corrugated . gripper bar will takes paper to die cutting section to achieved feed

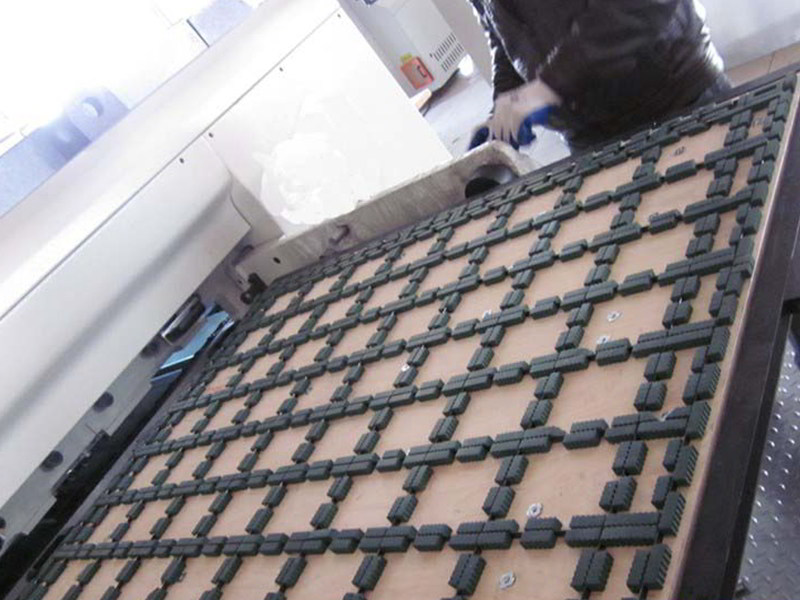

die cutting section

Safety door and die chase safety locking system to ensure safe operation.

Complete lost sheet control throughout the entire machine

Centerline system compatible to centerline for quick change over and short set up time.

Air cushion underneath the cutting plate for easy cutting plate floating in and out.

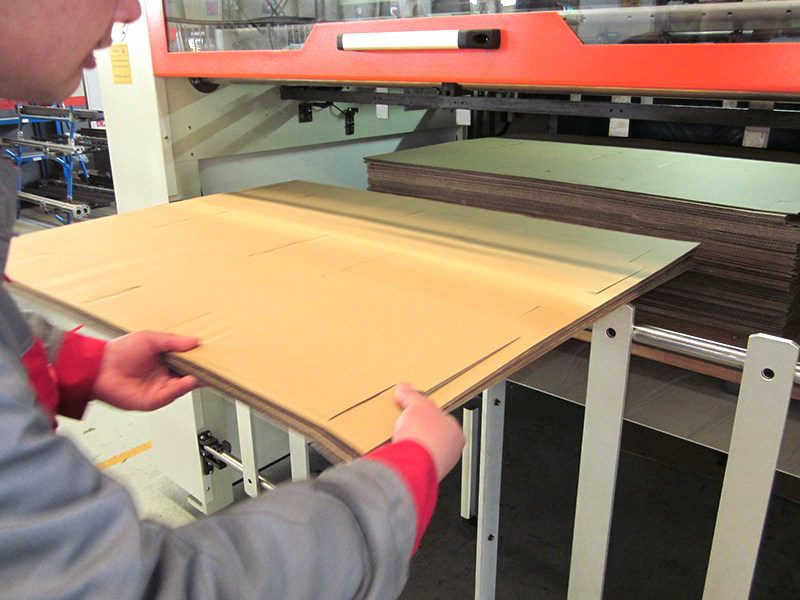

delivery section

Non-stop automatic delivery system

Delivery sheets quantity can be preset

Delivery can automatic adjustment based on the delivery when working

Specificattons

Model
LKS1450
LKS1620
LKS1850
LKS2100
Max. sheet Size
1480x1080mm
1650x1210mm
1880x1420mm
2100X1500mm
Min. sheet Size
550x480mm
650x550mm
650x550mm
800x600mm
Max .Die-Cutting Size
1450x1050mm
1620x1190mm
1850x1400mm
2070x1480mm
Max. Mechanical Speed
4200s/h
4000s/h
3500s/h
3000s/h
Min. gripper waste
8&9mm
8&9mm
10mm
12mm
cutting rule height
23.8mm
23.8mm
23.8mm
23.8mm
electrical power
20.5 kw
20.5 kw
24kw
27kw
die cutting precision
± 0.5mm
± 0.5mm
± 0.5mm
± 0.5mm
Total Power
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
Max .Die-Cutting Pressure
300t
350t
400t
500tons
Gross Weight
17.5t
21.5t
26tons
28tons
pressure adjusting range
± 1mm
± 1mm
± 1mm
± 1mm
Stock range
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
Inner chase size
1480x1080mm
1646x1220mm
1890x1430mm
2110x1510mm
dimension
6330x4860x2350mm
6220x5155x2550mm
7640x5280x2600mm
8000x5800x2700mm
