800 Automatic die cutting with stripping of cardboard

Product Description

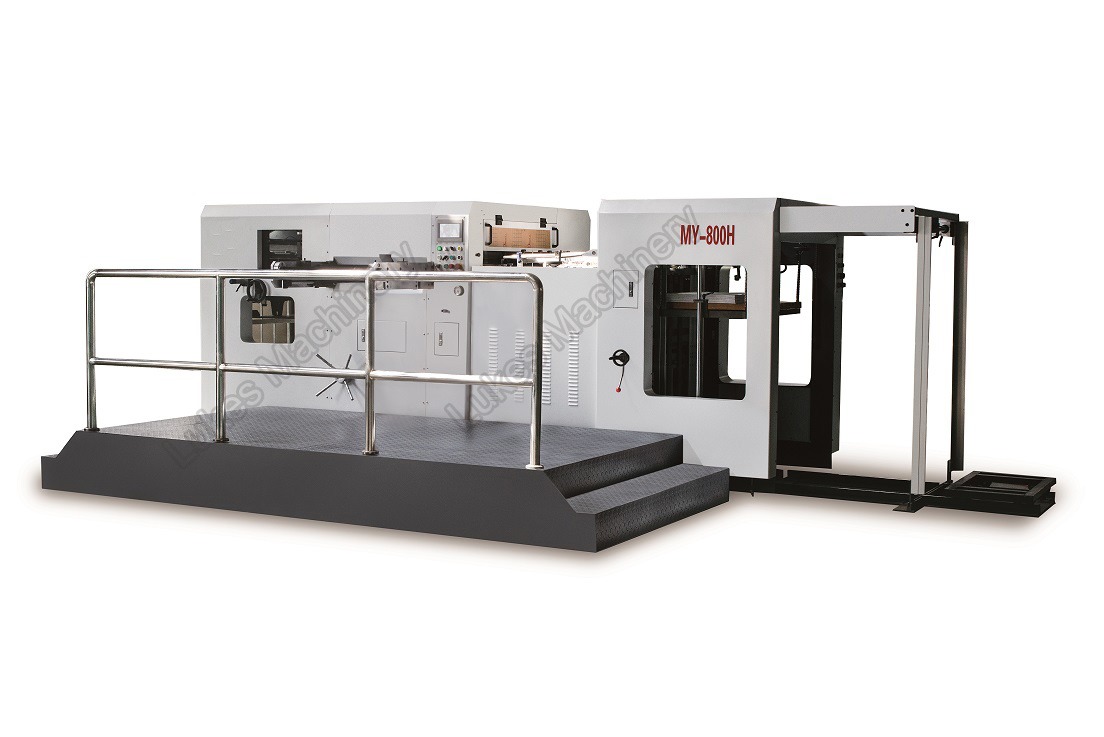

800x610mm automatic die cutting machine has with stripping and without stripping section 2 models. this model suit for any kinds of small size paper board/ cardboard/ mono carton/ duplex board , fast speed with stable running

Components

feed unit

  • Adopts enlarge feeder system with 9 suctions nozzle( 4pcs suction and 5 sending) applicable for paper in different thickness . similar Bobst Feeder design.
  • large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.

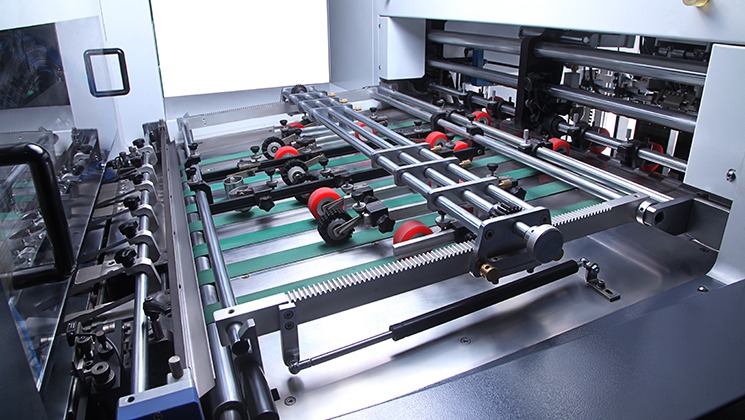

feed table

he paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.

■ Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

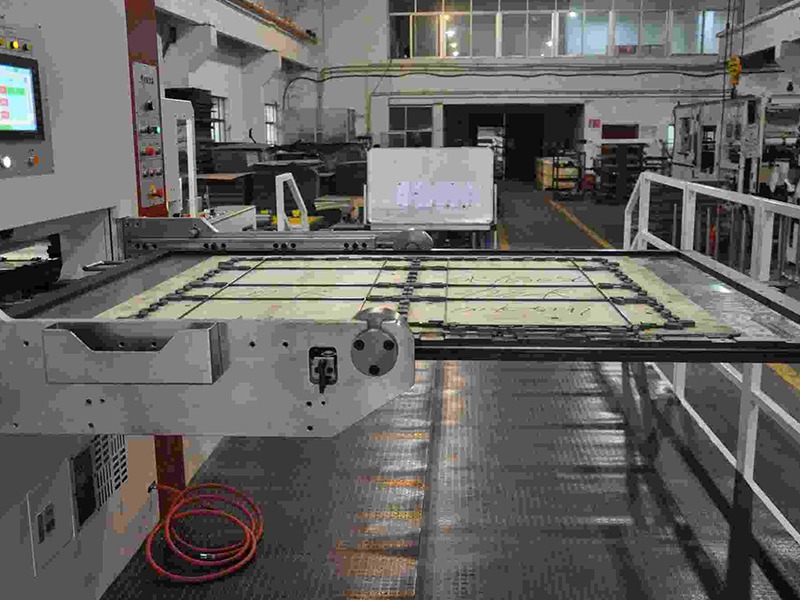

die cutting section

  • The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

stripping section

  • By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting.
  • The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.
  • The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.
  • The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate.

Specificattons

Max.sheet Size 810x610mm
Min.sheet Size 320x230 mm
Max.Die-Cutting Size 790x590 mm
Max.Mechanical Speed 7500s/h (depand on die and sheet’s conditions)
Min.gripper waste 9mm
Cutting rule height: 23.8mm
Die cutting precision: ± 0.1mm
Electrical Power 380V.50HZ, 3-Phase
Max.Die-Cutting Pressure 250tons
Gross Weight 10500KGS

pressure adjusting range: ± 1.5mm
Stock range corrugated board ≤ 4mm cardboard 100-1500g
Max. feeding pile 1400mm
Dimension 6400x3400x2000 ( include working platform)
Power & Air Infomation
Total power required 14.5KW
Max. delivery pile 1200mm
Air compressor 0.67 m3/min
