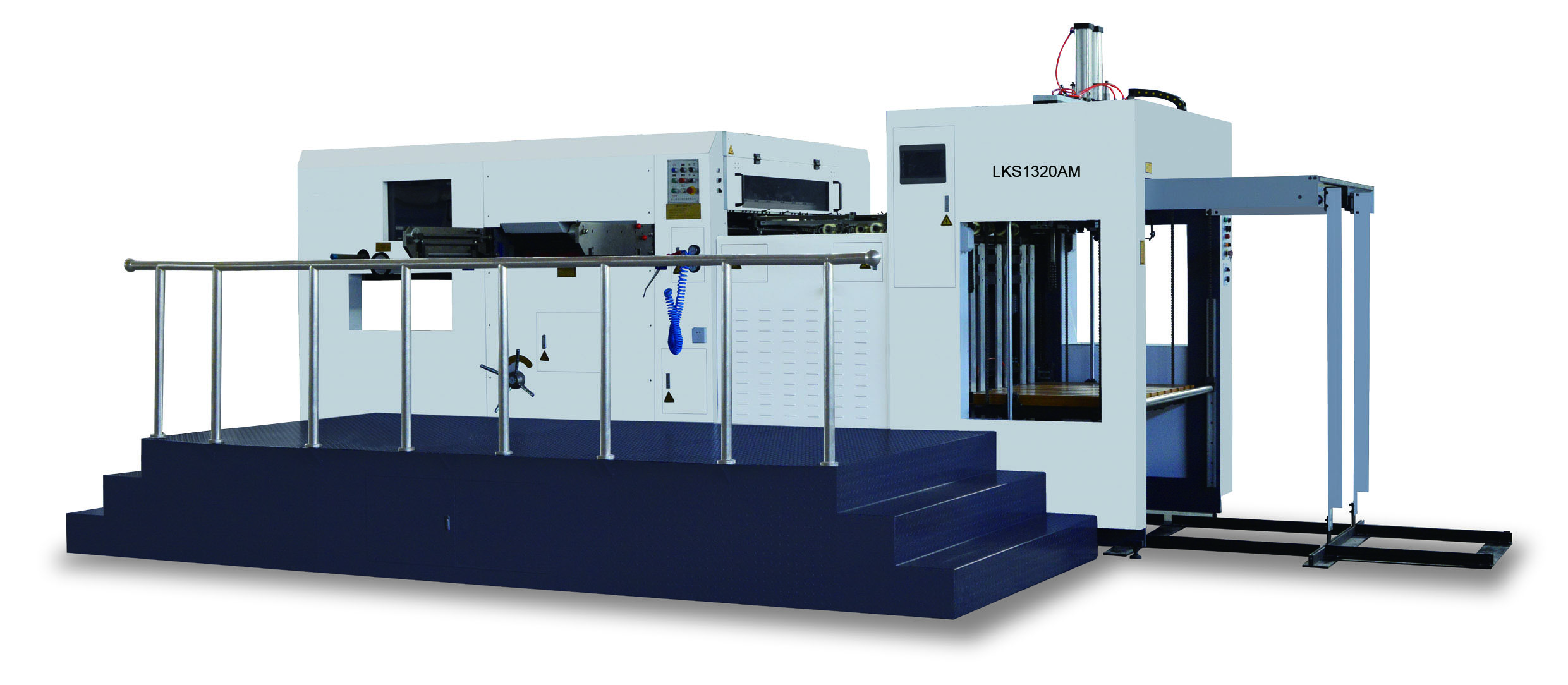

1500 Multifunction Tiptronic (Auto/Manual ) Die Cutting Machine

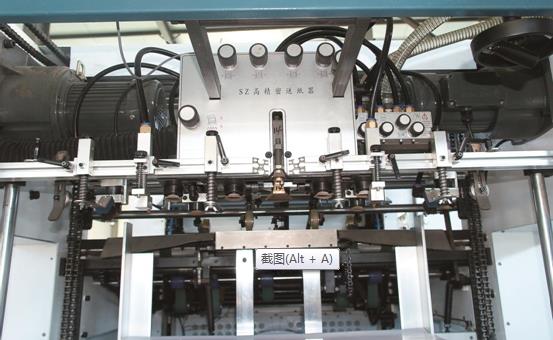

Feeder section

• The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.

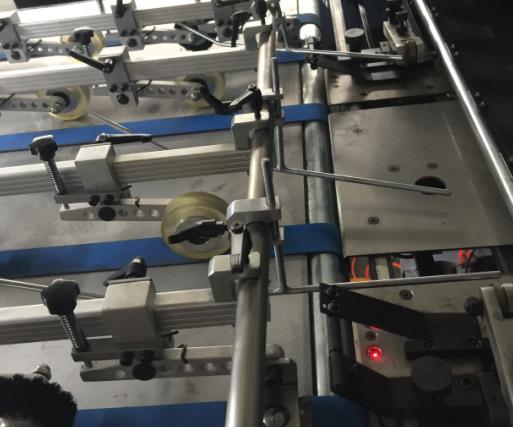

feed table

The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.

■ Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

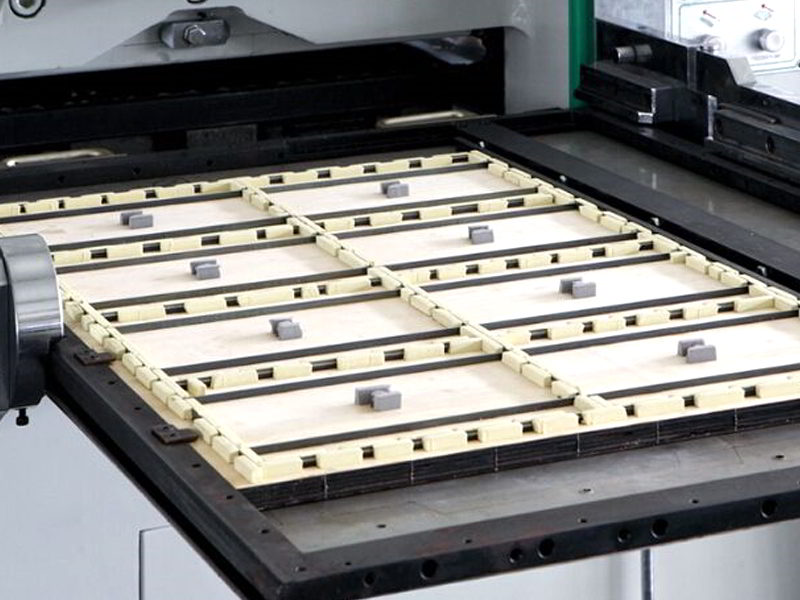

die cutting section

• The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
• This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

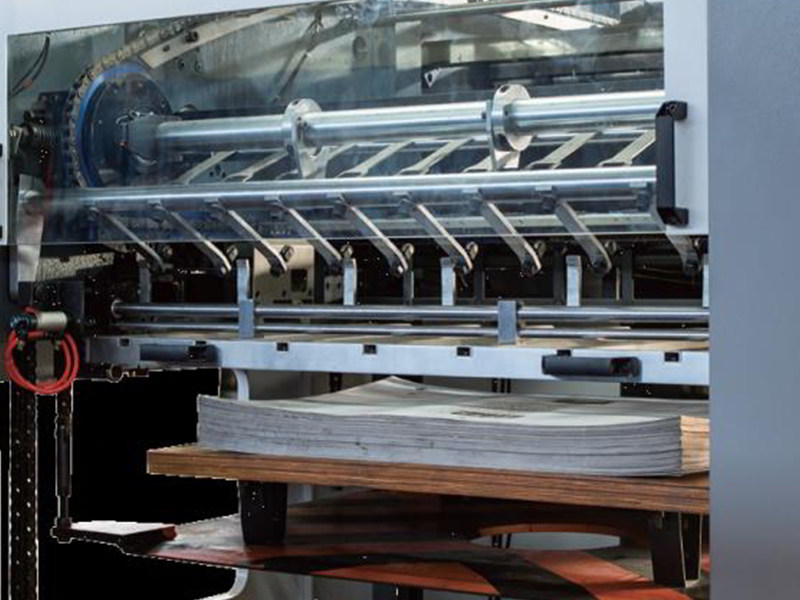

delivery section

• Paper can be collected automatically and orderly.

■ The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.

■ By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.
