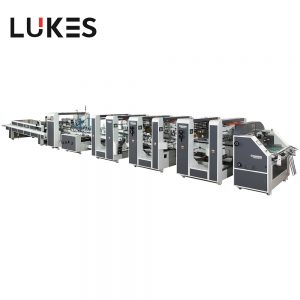

High Speed Automatic Folder Gluer Machine

Product Description

Model: PSW Series Automatic Folder Gluer Machine

Characteristics:

LKS-PSW series is multifunction model folder gluer machine. It is suitable for small box package such as cosmetics box, medicine box, and other 2&4 fold bottom lock cardboard boxes.
The main wallboard of LKS-PSW automatic folder gluer machine adopts 20mm thickness steel plate with cool and heat treatment, strong steady, it equip with electrical adjust size, belt and chain to gear drive, import straight slideway with screw rod fully electrical adjust sheet size request to ensure easily testing and operation. The machine is adopted with touch screen. PLC operation system. long distance diagnose and maintenance system and remoted controlling system to meet easy operation.

Suitable Box :

Straight line box, lock bottom box, three fold box, double side flat box.

Lukes Machinery is one of the leading supplier manufacturers of Automatic folder guer machine in China, our factory high quality automatic folder gluer machine at competitive price for sale.

Components

Feed Section

With nine pieces of 50mm width air sucking feeding belts. The metal plate of 10mm thickness can be adjusted horizontally for different width.

Rectify Folding Section

Paper Correction: Equipped with auto-correction device to correct the obliquity and ensure the correct feeding.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

Main Drive

Standard lower glue pos. each left and right side.
Optional electronic gluing system.

Folding Section

The right side and the left side fold the second folding line into 180° and the fourth folding line into 180° separately.

Trombone Section

Box jam up detector /Batch counter as standard.
Pneumatic stopper at conveyor section to prevent glued box from fish tailing.

Conveyor Section

Pneumatic upper carrier is adjustable vertically to obtain perfect pressure on glued boxes.

Specificattons

Model	Paper types	Box making width
LKS65OPSW	180-500gms(cardboard)	70-650mm
LKS80OPSW	200-800g(cardboard)E/F corrugated	225-800mm
LKS110OPSW	200-500g (cardboard)E/B/A corrugated	225-1100mm
LKS145OPSW	300-800g (cardboard)E/B/A/C/5ply corrugate	380mn450mm
LKS162OPSW	300-800g (cardboard)E/B/A/C/5ply corrugate	400-1620mm
LKS180OPSW	300-800g (cardboard)E/B/A/C/5ply corrugate	640-1800mm
LKS220OPSW	E/B /C/A flute 3ply5ply corrugated	800-2200mm
LKS240OPSW	E/B /C/A flute 3ply5ply corrugated	900-2200mm

Max. speed	Total power	Weight	Dimension
300m/min	8.8 KW	6T	9600×1100x1350mm
250m/min	13.5KW	6.8T	15500x2100x1700mm
250m/min	17KW	7.8T	13000x2100x1300mm
180 m/min	40KW	16T	21000x2700x2200mm
180 m/min	45KW	18T	22000x2700x2200mm
180 m/min	50KW	20T	23000x2750x2250mm
120 m/min	25KW	13T	16000x3100x2100mm
120 m/min	30KW	15T	16000x3500x2100mm
