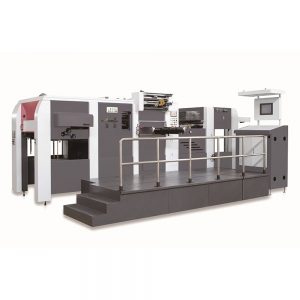

LKS800T Automatic Hot Foil Printing Machine

Product Description

Model: LKS800T Automatic Hot Foil Printing Machine

Features:

Automatic hot foil printing machine adopts high precision intermittent mechanism and high precision positioning system, which makes the machine run more smoothly and position more accurately.
The 800T automatic hot foil printing machine applies the PLC electrical control system of the electronic cam, which makes the program control of the whole machine action more accurate and the adjustment more convenient.
The automatic hot foil printing machine adopts the man machine interface monitoring and display system, which makes the machine running status clear at a glance, fault display, and easy troubleshooting, which truly realizes man machine dialogue and man-machine communication.
800T automatic hot foil printing machine adopts imported pneumatic clutch, which has long service life, low noise, and smoother clutch and brake. Pneumatic locking plate makes plate locking convenient, fast, safe and reliable.
The main electrical components, bearings, fasteners, chains, etc. of the whole machine are imported brand-name products to ensure the accuracy and service life.
Electrical components are CE certified products, each protective cover meets CE requirements, safe and reliable.
The main drive lubricating system adopts a strong air cooling device, which makes the machine more efficient in high temperature and long term work.
Fully computerized hot stamping foil stepping control system, preferably imported servo motor, anodized aluminum retraction and release synchronization, constant tension, more accurate transmission skipping.
12 heating zones independently set temperature and constant temperature control to meet various requirements of customers for hot stamping process.

Components

Collecting Waste Foil Wool Wheel Set

The power is controlled by imported servo motor, and the speed can be synchronously adjusted according to the size of the hot stamping, so that the anodized aluminum can maintain a constant tension.

Quick Case Changer

The vertical under hanging foil rack can be pulled out of the machine, making it more convenient to wear gold foil.

Receiver

There is a brush box function. Equipped with a simple waste foil reel device.

Honeycomb Board

The honeycomb board is made of high heat-resistant special materials, and the hole arrangement is reasonable and effective, and any position can be positioned. Easy to install and remove with the quick release lock.

Delivery Department

The delivery department is equipped with inspection personnel to enter the security system. Configure the interstitial counter. Use segmented adjustable brushes and paper blowing devices to stabilize the finished product in the delivery section. Tensioning buffer device for tooth row transmission chain.

Feeding Positioning Part

The inclined paper feeding table is more suitable for high-speed thin paper and positioning. The side positioning adopts the pull and push dual purpose side gauge device, which is selected according to the paper quality, and is easy to switch.

Vertical and Horizontal Hot Stamping System

Using advanced technology, single-root tooth row positioning can be used for fine-tuning compensation before and after. Horizontal bronzing two-axis/vertical bronzing three-axis (standard configuration), horizontal bronzing waste box rack is placed on the machine operation side, which is more conducive to the operation. 12 electric heating zones are equipped with timed pneumatic thermostat function, and the temperature of each zone can be controlled and adjusted individually. The motion controller is used to make the lifting curve of the box feeding and the service can track the change of the machine speed in time, so as to achieve the effect of smooth box feeding.

Electrical Control

12 temperature zones independently control the temperature, which can adapt to more complex anodized aluminum transfer printing effects, save energy, and keep constant temperature stable. The interface controls are integrated, and a large number of electrical switch controls are designed in the operation screen, which is simple and clear and easy to operate. The imported servo-driven aluminum foil feeding and box-pulling system is used independently to ensure stable and accurate conveying of anodized aluminum and reliable tension control under high-speed conditions, providing an effective guarantee for high-speed, stable and accurate hot stamping.

Specificattons

Model	LKS800T
Maximum paper size	810×610mm
Minimum paper size	350×230mm
Maximum die cutting size	790×600mm
Maximum hot stamping range	760×540mm
maximum operating speed	7500s/h
Maximum hot stamping speed	7000s/h
Maximum height of paper stack	850mm
Delivery stack maximum height	800mm
Applicable paper range	Cardboard: 0.1-1.5mm Corrugated board: ≤4mm
Die cutting accuracy	±0.1mm
Hot stamping temperature range	0~200℃
Heating plate heating area	12
Number of foil reels	3 vertical and 2 horizontal
Maximum anodized aluminum length	1800～2200m
maximum working pressure	250t
Total Weight	12.5t
Heating plate power	18kw
The total power of the whole machine	36kw
Dimensions (L×W×H)	6470×3550×2160mm

Vertical foil stamping section performance specification
Maximum foil width	760mm
Minimum foil width	25mm
Maximum one pull foil length	600mm
Maximum gold foil roll diameter	φ200mm

Horizontal foil stamping section performance specification
Maximum foil width	540mm
Minimum foil width	25mm
Maximum one pull foil length	800mm
Maximum gold foil roll diameter	φ220mm
