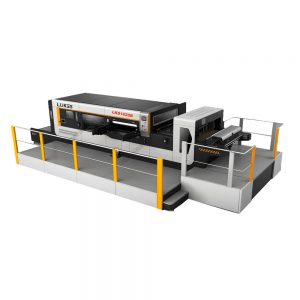

LKS1300B Automatic paper die cutting machine is a special equipment developed by our company combining the superior performance of similar products at home and abroad, which is suitable for high-grade color boxes and color box die cutting.
Automatic paper die cutting machine uses high strength gripper row, and the advanced gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the die cutting accuracy of the paper.

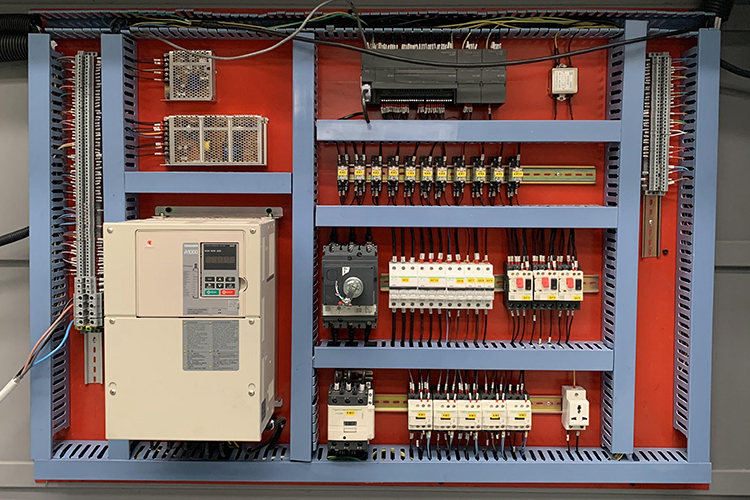

Equipped with high precision intermittent mechanism; fast acting pneumatic clutch and pneumatic locking. Using programmable controller and man machine interface, digital display of the machine’s working speed, number of sheets, and total running time; the machine’s fault display makes troubleshooting very convenient.
The inverter is used to control the main motor, with stepless speed regulation and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety.
The die cutting pressure can be adjusted separately before and after, the manual turning is convenient and labor-saving, and it can also perform die-cutting without a mouth.
Lukes Machinery is one of the Leading Supplier Manufacturers of 1450B Die Cutting Paper Machine Automatic Machine in China, Our Factory High Quality Die Cutting Paper Machine Automatic Machine at Competitive Price For Sale.

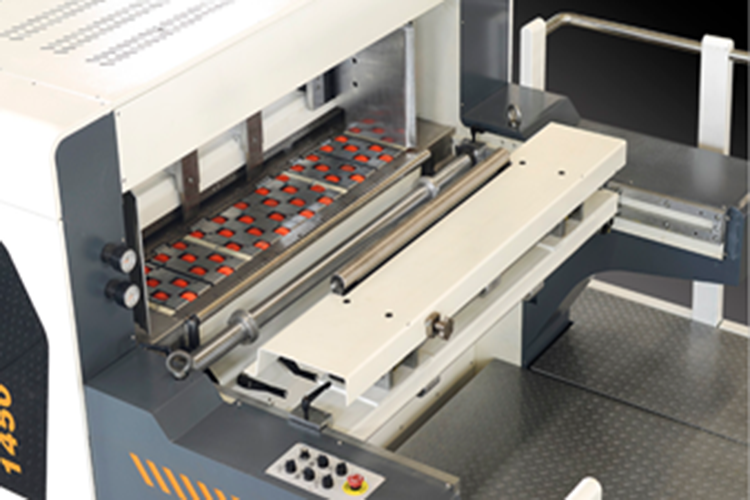

The automatic paper die cutting machine is equipped with an advanced suction system, the suction size can be adjusted, and the paper size can be adjusted electrically, saving time and effort. Cooperate with high-power servo to make the paper in place accurately, and the special material for the paper-feeding rubber wheel has good friction and is more durable.

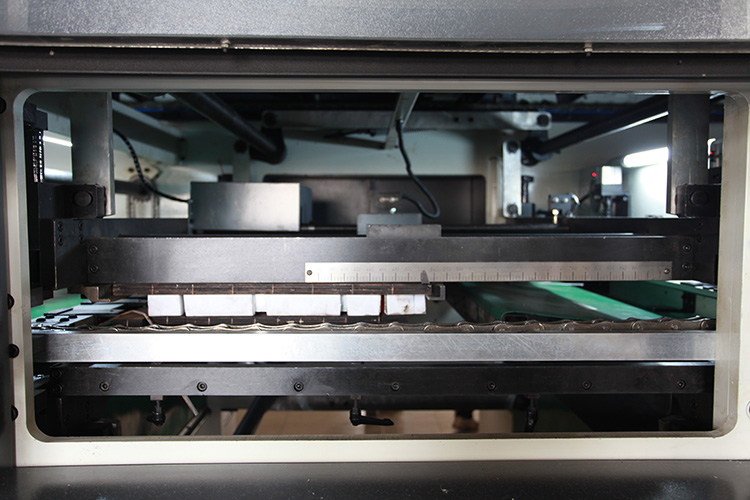

The new delivery system makes the delivery more tidy. Paper can be stacked and counted out. For example, when stripping is easy to adjust, the pneumatic tooth row chain is used to tighten, and the chain is in a slack state after the shutdown, without stretching the chain, and the service life is longer.
The plate frame adopts the hanging plate to install the card, which is convenient and quick to change the version, and the old version is more convenient to change the version, and the pneumatic lock plate. The steel plate is made of 65 manganese and quenched with a hardness of 60-65 degrees, which is more suitable for the hardness of the cutting line and increases the service life of the wire. Steel plate push-pull with air suspension function, easy and fast.
1300*980mm
550*480mm
1300*960mm
4500s/h
26.2kw
±0.5mm
380V. 50HZ, 3-Phase
250T
20T
≥300g cardboard 1-7mm corruhated board
1330*990mm
7645*4645*2220mm
