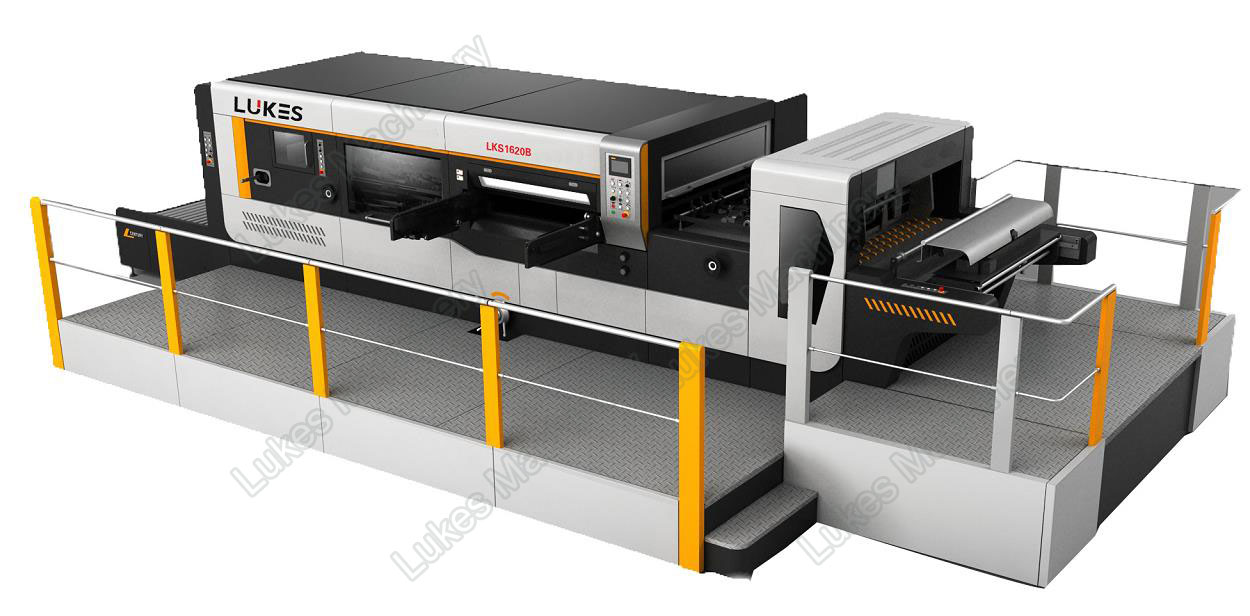

1450×1080 lead edge automatic die cutting machine with full stripping is popular model die cutting machine ,which can cut different kind of material such as corrugated board/ pp hollow board / solid board . lead edge feeder can feed duty heavy board. also is ripe technical for offset printing machine/ flexo printing machine

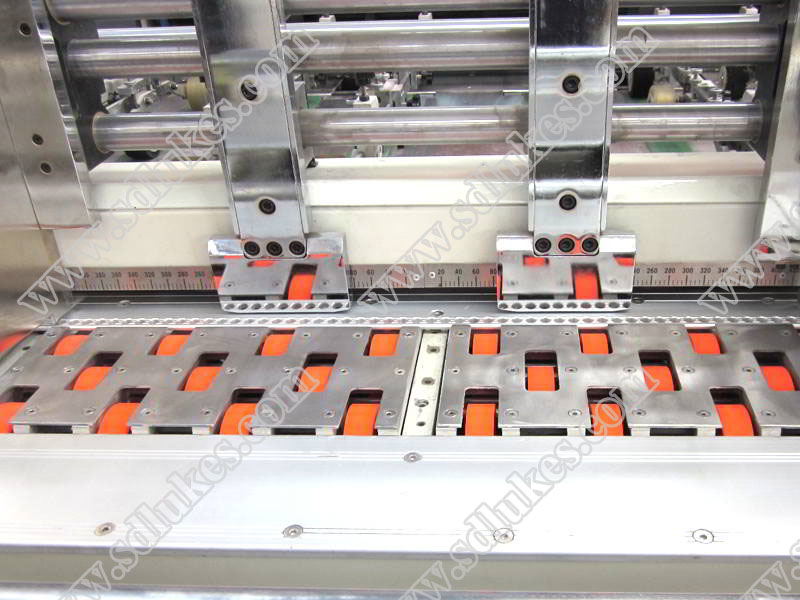

■ Lead edge feeder allows consistent and precise feeding of wide range corrugated board.
■ Vacuum suction adjustment achieved through inverter for wide range from F flute to double wall.
Max. Paper Size 1480*1080 mm
Min. Paper Size 600*500 mm
Max. Cutting Size 1450*1050 mm
Max. Cutting Pressure 300x104 N
Stock Range 1mm ≤ Corrugated board ≤ 8.5 mm
Die Cutting Accuracy ±0.5 mm
Max. Mechanical Speed 4000 s/h
Pressure adjustment ±1 mm
Minimum Front Margin 8 mm
Inner Chase Size 1480*1080 mm
Total Power 33.7 KW
Machine Dimension 8195*4856*2235 mm (include the work platform, pre feeder)
Machine Dimension 7750*2670*2235 mm (exclude the work platform, pre feeder, die change frame)
Total Weight 22t
