LKS1450B Die Cutting Paper Machine Automatic

Product Description

Model: 1450B Die Cutting Paper Machine Automatic Machine

Characteristics:

This machine adopts high strength gripper row, and the advanced open grip gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the die cutting accuracy of the paper.

Equipped with high precision intermittent mechanism; fast acting pneumatic clutch and pneumatic locking. Using programmable controller and man-machine interface, digital display of the machine’s working speed, number of sheets, and total running time; the machine’s fault display makes troubleshooting very convenient.

Die cutting paper machine automatic die cutter machine The main motor is controlled by frequency converter, stepless speed regulation, and stable operation.

The die cutting paper machine automatic machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety.

The die cutting pressure can be adjusted separately before and after, the manual turning is convenient and labor-saving, and it can also perform die cutting without a mouth.

Introduction：

Lukes Machinery is one of the Leading Supplier Manufacturers of 1450B Die Cutting Paper Machine Automatic Machine in China, Our Factory High Quality Die Cutting Paper Machine Automatic Machine at Competitive Price For Sale.

Components

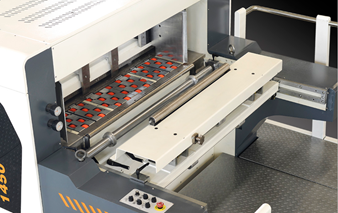

Feed Section

Die cutting paper machine automatic machine is equipped with high-speed and precise leading edge paper feeding device, which can stably convey various types and qualities of corrugated paper, with strong adaptability and wide working range. High-precision cam deceleration device makes paper conveying more stable.

Stripping Section

The action of the three-frame linkage stripping device is stable, accurate, powerful and thorough. The double-layer stripping upper and lower molds can be quickly loaded and unloaded, saving time and effort. At the same time, the three-frame structure perfectly solves the stripping of small-hole paper.

Die Cutting Section

The safety design of the die-cutting bottom plate and the knife stencil, and the design of the easy moving and rotating device make it more convenient to install and adjust the plate. Pneumatic lock plate expansion makes the upper plate frame fixed more firmly, more accurately and saves time. Recognizing and translating online.

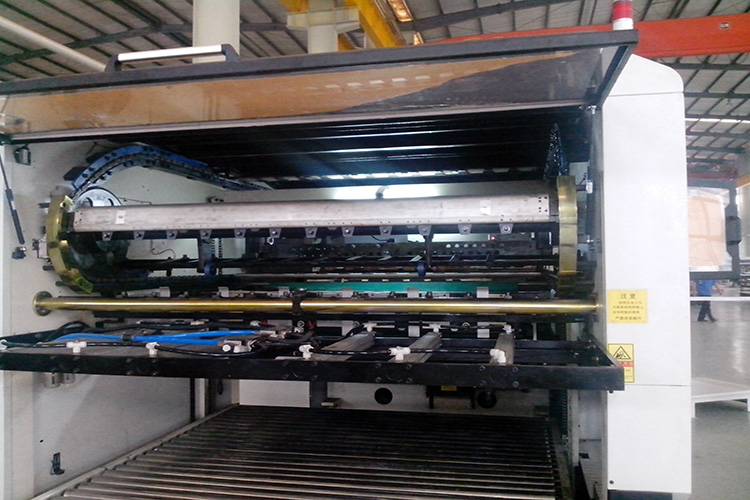

High and Low Delivery Device

1450B die cutting paper machine automatic machine adopts stainless steel rollers for conveying, and the paper surface is not easy to be scratched. The unique segmented structure can realize non-stop stacking counting delivery and whole stacking delivery. The four-corner lifting platform runs smoothly and is easy to maintain.

Pneumatic Clutch

Imported pneumatic clutch is adopted, which has long service life, low noise, more stable braking, rapid clutch and large turning force, and conforms to European export standards. The German Siemens motor saves 1/3 of electricity than the domestic motor.

Electrical Department

This machine adopts Siemens PLC program control, frequency conversion speed controller. All kinds of electrical components and detection switches are made of famous brand products from Japan, France, the United States and other companies. Precise operation control and stable performance.

Specificattons

Max.sheet Size:

Min.sheet Size:

Max.Die-Cutting Size:

Max.Mechanical Speed:

Electrical power:

Die cutting precision:

Total power:

Max.die cutting pressure:

Gross weight:

Stock range:

Inner chase size:

Dimension:

1480*1080mm
550*480mm
1450*1080mm
4500s/h
32.7kw
±0.5mm
380V.50HZ, 3-Phase
300T
23.5T
E.B.C.A and AB flute corrugated board
1480*1104mm
9921*5176*2627mm
