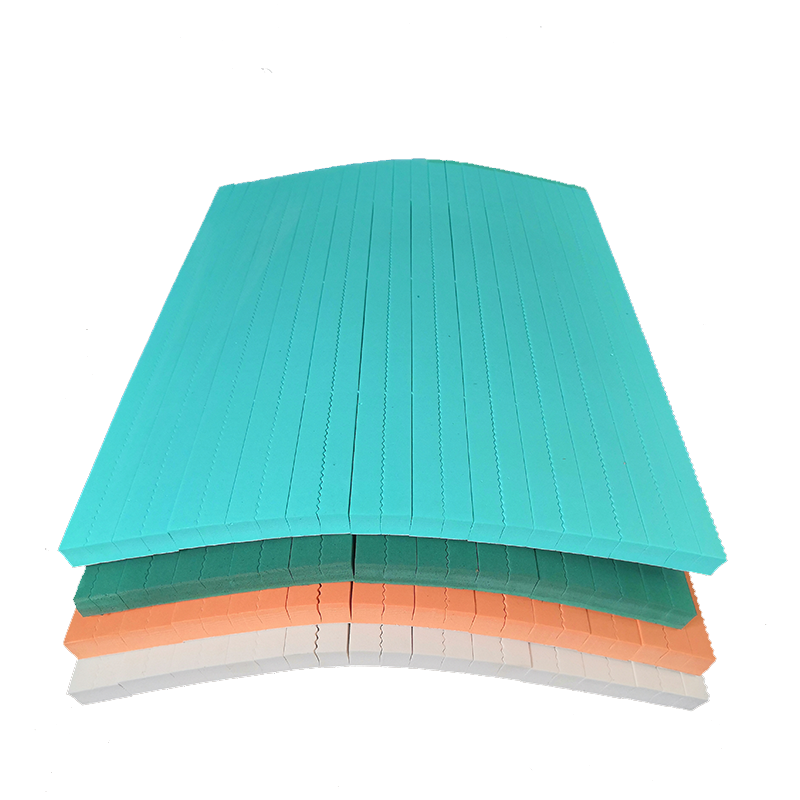

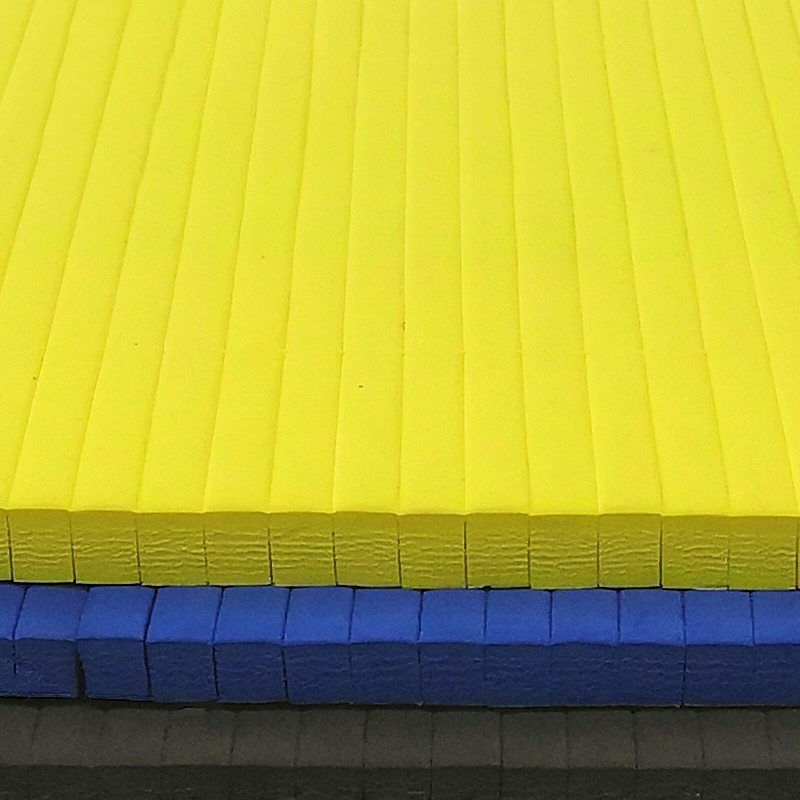

· Ejection rubber strips Made of high spring rubber and stick the spread cloth on the back of the rubber
· Good Spring back capacity/ High resistance to compression
· Convenient to stick and adhere
· Needed for the cutting machine and the die board material
For more detailed information, please consult 008615589650597.
Hardness： 50(blue/black), 60(yellow) Shore
Size: 380*300/pcs
10*8 10*10 22pcs/box
12*8 12*10 18pcs/box
Hardness： 40(white), 45(cyan), 50(orange), 60(green) Shore
Size: 380*300/pcs
9*8 9*10 24pcs/box
12*8 12*10 18pcs/box
How to choose rubber:
Rubber hardness selection:
Choose the rubber with appropriate hardness according to the die cutting speed, material, thickness, and hardness. Generally, the higher the hardness of the rubber, the shorter the rebound time, which is convenient for the blade to separate from the die cut material quickly.
Rubber height selection:
The rubber should be slightly higher than the blade. Ordinary 40-45 degree rubber is 2-3MM higher than the knife edge, 50 degree rubber is 1.5-2MM higher than the knife edge, and 60 degree rubber is 1-1.5MM higher than the knife edge.
