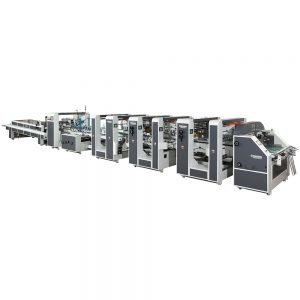

LKS-650PSW Full Automatic Folder Gluer Machine

Product Description

Model: LKS-650PSW Full Automatic Folder Gluer Machine

Description:

The Full Automatic Folder Gluer Machine adopts a tooth rod adjustment mechanism, which is suitable for making boxes of different specifications. The operation is quick and simple, and it is easy to master.
The power transmission adopts a strong timing belt, which is stable and durable, high efficiency, low noise, and easy to maintain; it adopts variable frequency speed regulation motor.
PLC control system, original Japanese imported components. The upper belt plate is independently driven, and the cylinder pressure automatically adjusts the heavy-duty pressure belt, which is conducive to the pressing and forming of corrugated boxes. Each part is driven by an independent motor, and the movable pneumatic conveying part.

Introduction:

Lukes Machinery is one of the leading supplier manufacturers of automatic folder gluer machine in China, our factory high quality full automatic folder gluer machine at competitive price for sale.

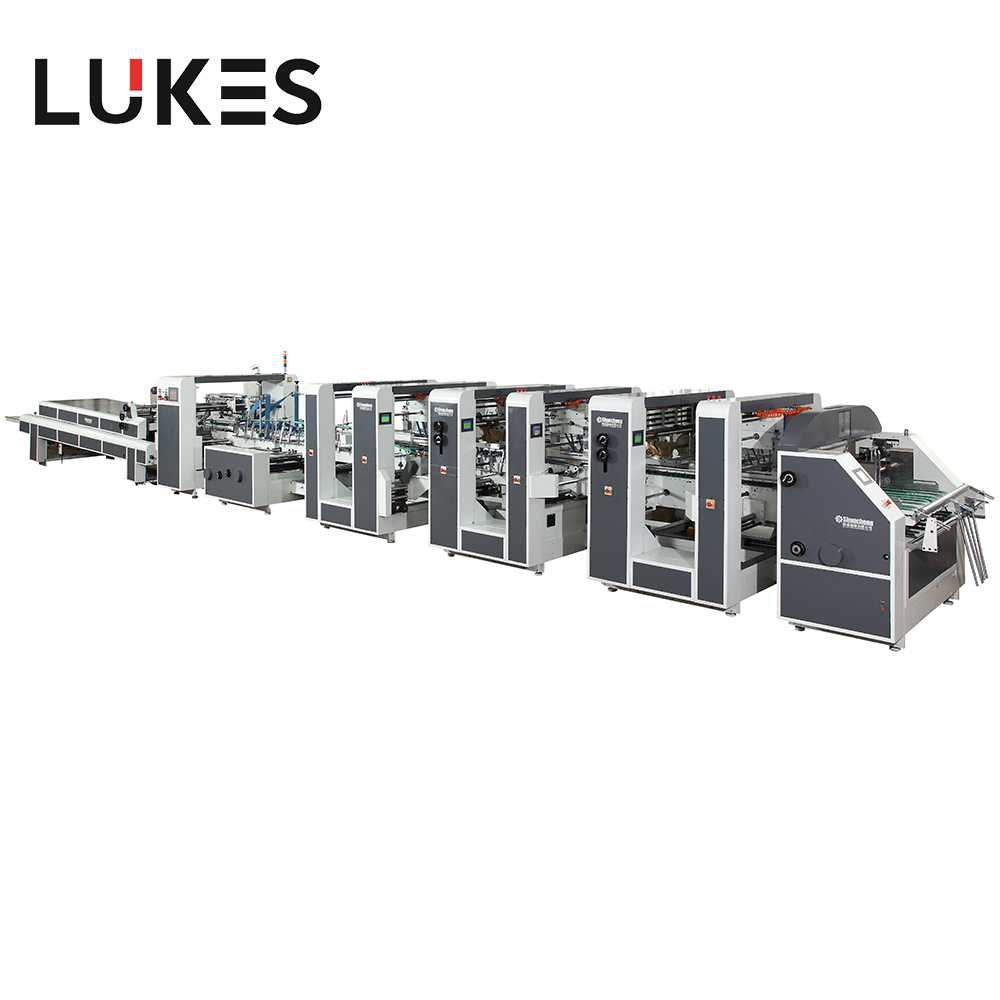

Full Automatic Folder Gluer Machine

Videos

Components

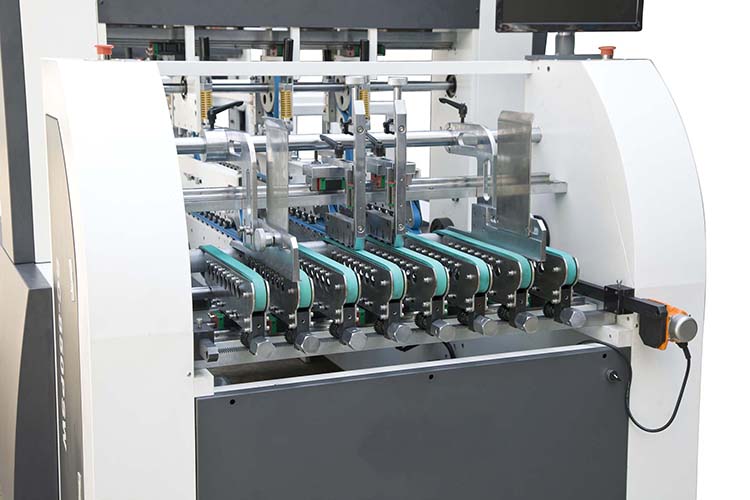

Feed Section

With nine pieces of 50mm width air sucking feeding belts. The metal plate of 10mm thickness can be adjusted horizontally for different width.

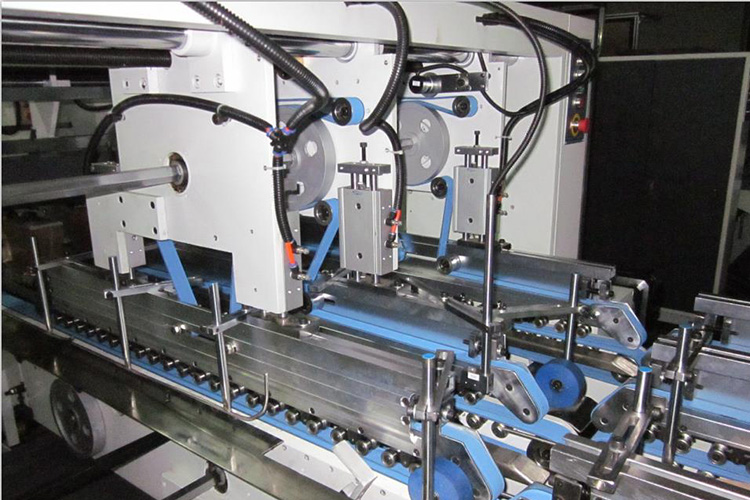

Rectify Folding Section

Paper Correction: Equipped with auto-correction device to correct the obliquity and ensure the correct feeding.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

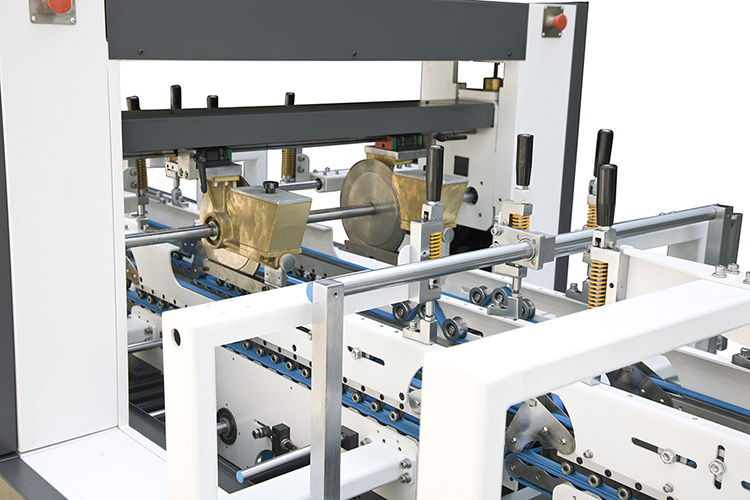

Main Drive

Standard lower glue pos. each left and right side.
Optional electronic gluing system.

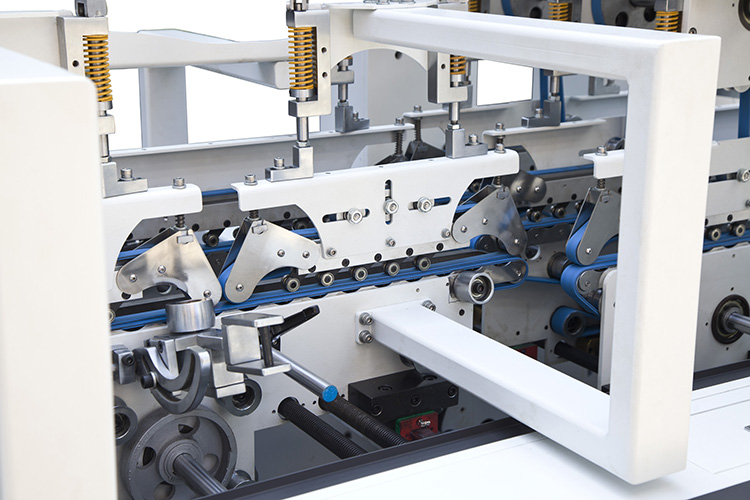

Folding Section

The right side and the left side fold the second folding line into 180° and the fourth folding line into 180° separately.

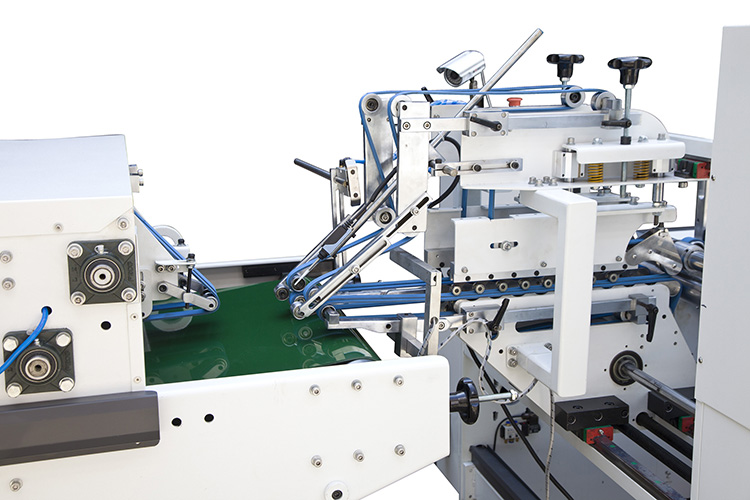

Trombone Section

Box jam up detector /Batch counter as standard.
Pneumatic stoppeconveyor section to prevent glued box froi fish tailing.

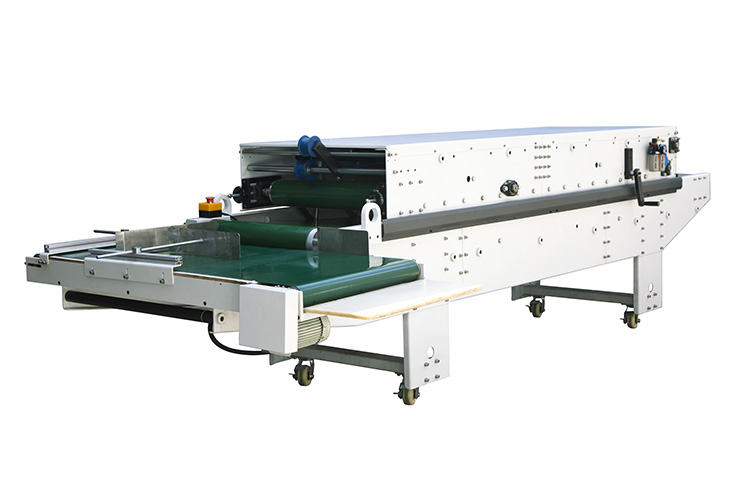

Conveyor Section

Pneumatic upper carrier is adjustable vertically to obtain perfect pressure on glued boxes.

Specificattons

Model LKS65OPSW
Paper types 180-500gms(cardboard)
Box making width 70-650mm
Max. speed 300m/min
Total power 8.8 KW
Weight 6T
Dimension 9600×1100x1350mm
