LKS800T Fully Automatic Foil Stamping Machine

Product Description

Model: LKS800T Fully Automatic Foil Stamping Machine

Application:

Fully automatic foil stamping machine is mainly used for die cutting of cartons, cartons, trademarks, Foil Stamping, creasing and cold embossing in the packaging and decoration industry.

Especially all kinds of advanced and fine prints, such as cigarette boxes, wine boxes, gift boxes, small home appliance boxes, cosmetic boxes, etc., can be used for ordinary and holographic anti counterfeiting Foil Stamping on LKS800T fully automatic foil stamping machine, as well as bump indentation, In order to obtain three-dimensional, exquisite and beautiful printed products.

Features:

By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can beshiftedtoensure. uninterrupted paper feeding.

Vertical and Horizontal Quick Changed Foil Device.

Horizontal Foil Feeding Servo Motor System which Adopt motion controller.

Lukes Machinery is one of the leading supplier manufacturers of fully automatic foil stamping machine in China, our factory high quality fully automatic foil stamping machine at competitive price for sale.

Components

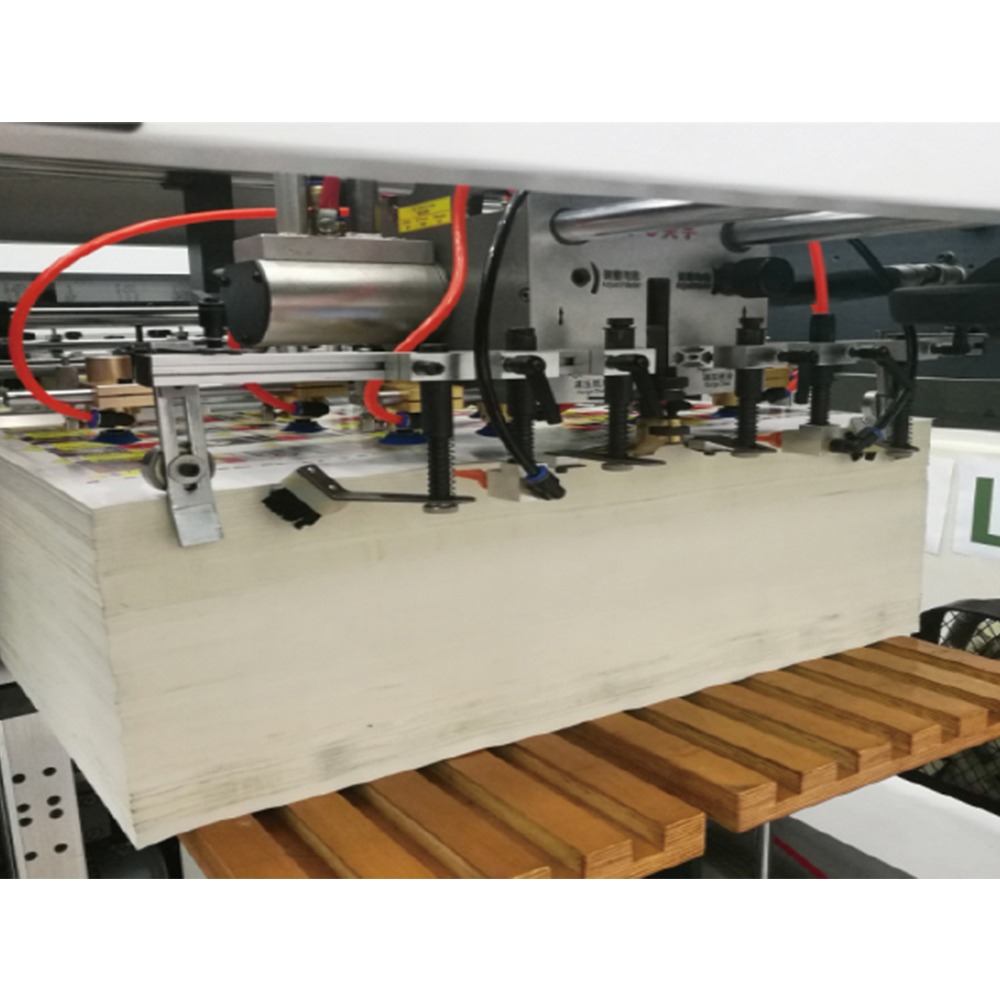

Feed Section

By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can beshiftedtoensure。uninterrupted paper feeding.

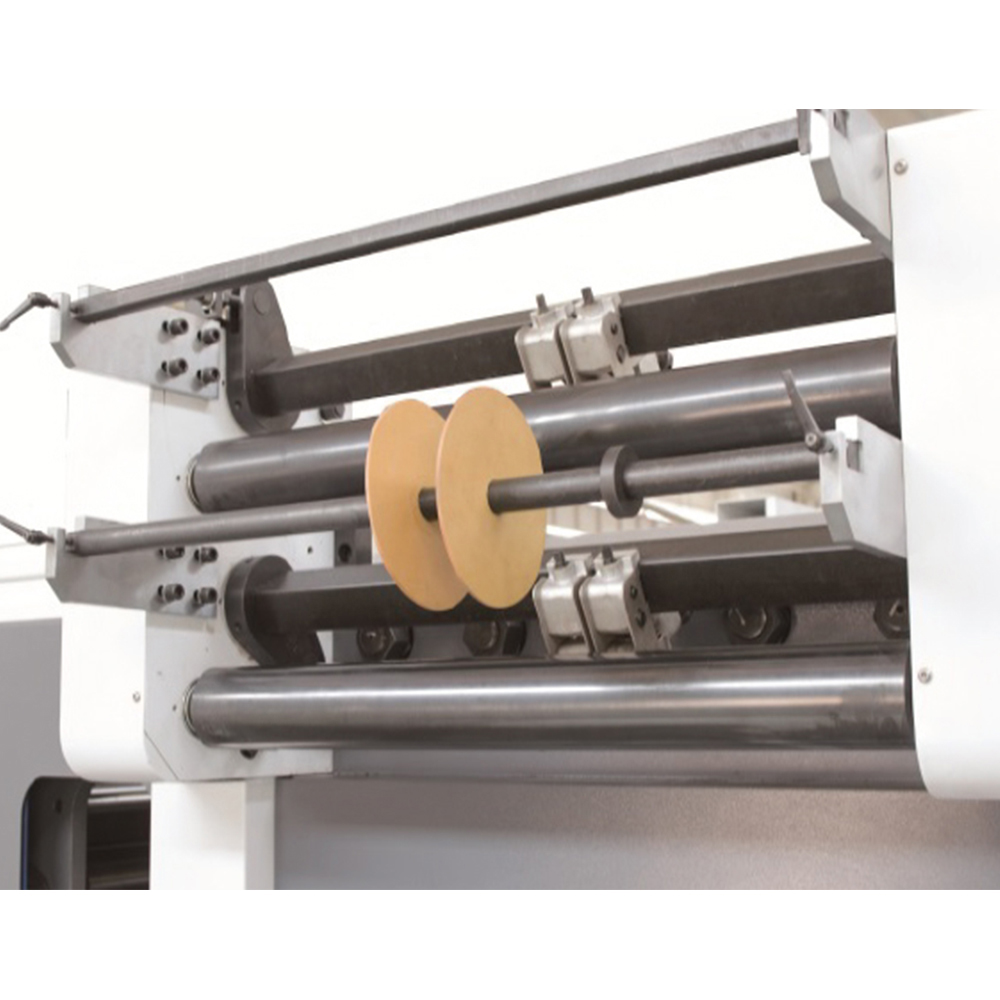

Vertical and Horizontal Quick Changed Foil Device.

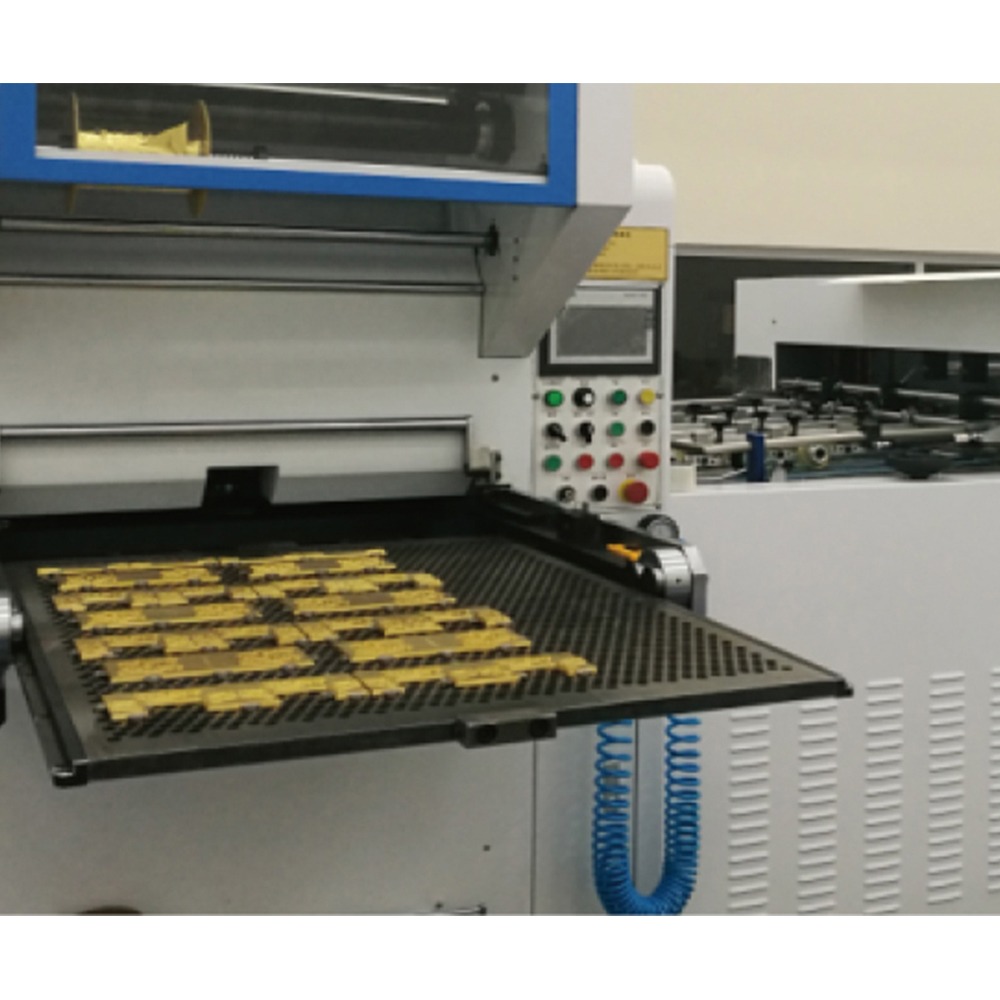

Hot foil stamp unit

The foil can step in both cross and longitudinal two directions (2 cross rollers and 3 longitudinal rollers).
The foil can step, which greatly meet client's needs in various stamping.
12 heating zones can be set individually and in constant temperature.

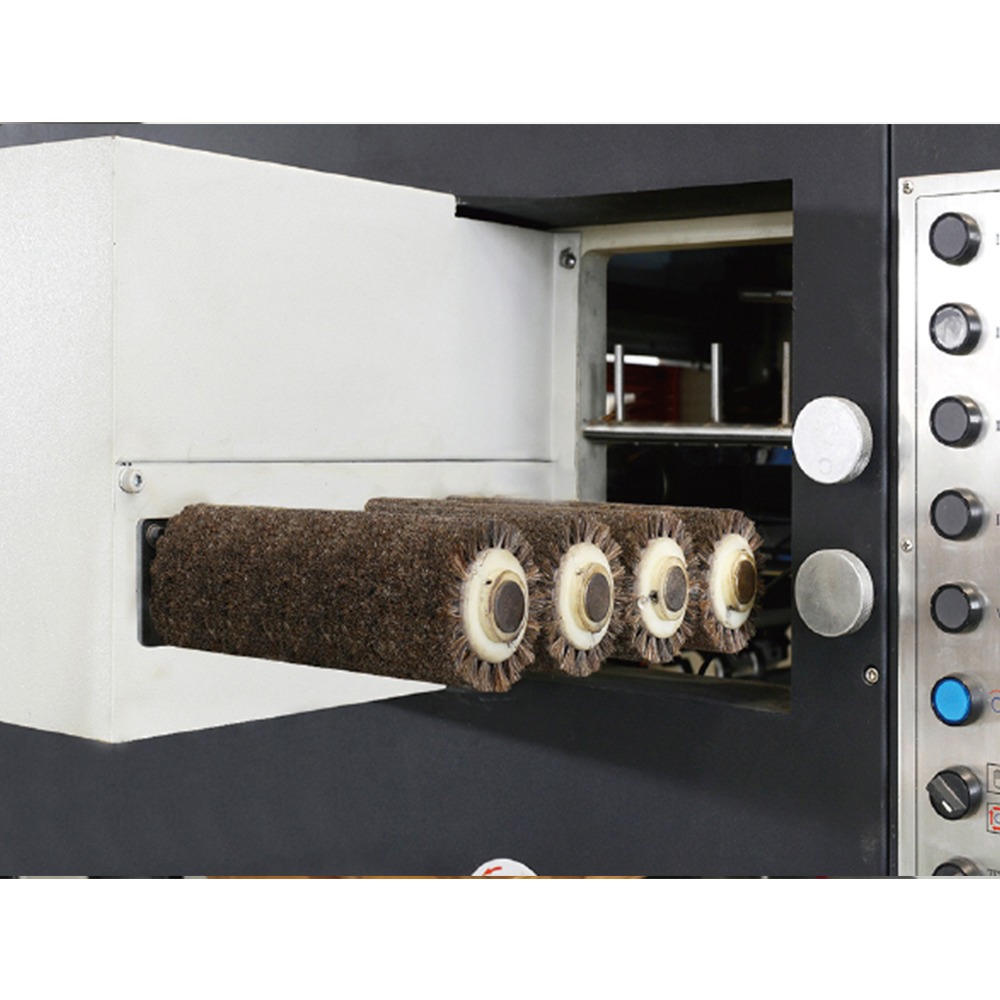

Rewinding Foil Device and Used Foil Removal Brushes.。
The foil removal brushes are driven by servo motors. These rollers are synchronized with foil feeding rollers so as to maintain a constant tension of foil.

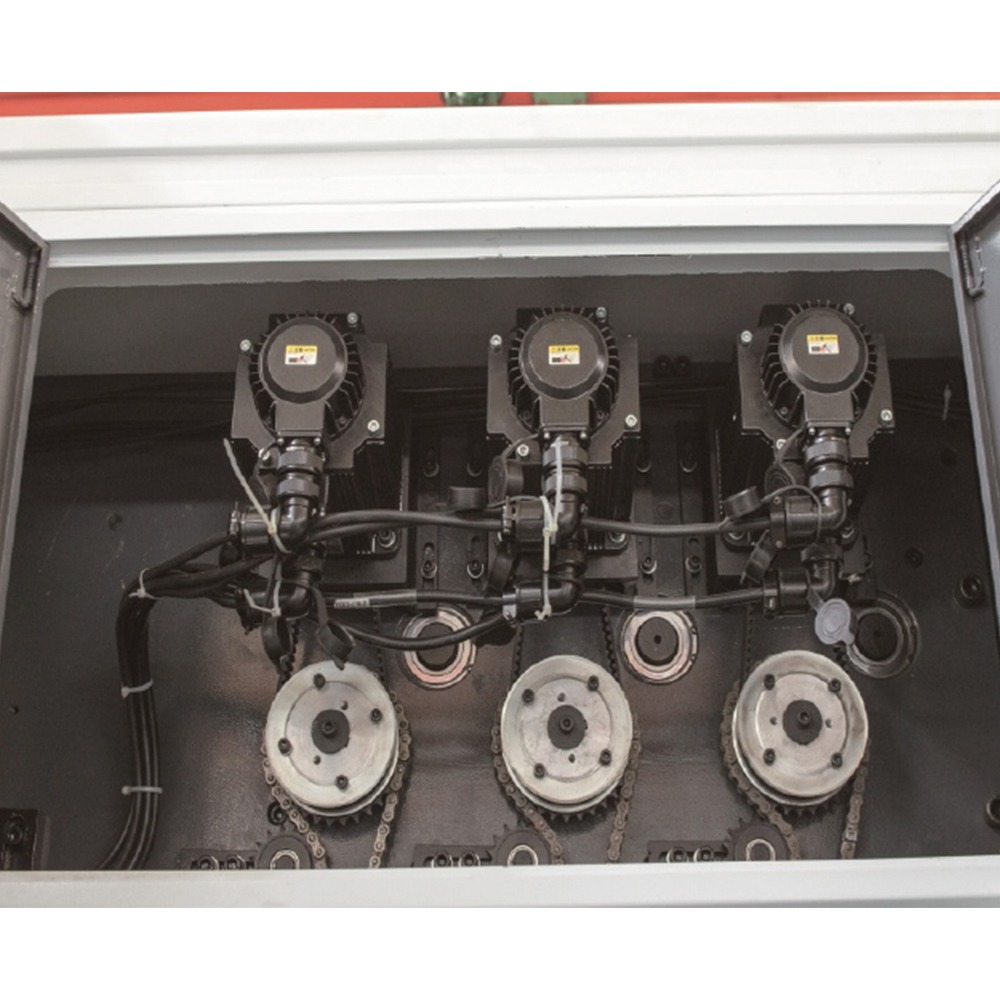

Horizontal Foil Feeding Servo Motor System which Adopt motion controller.

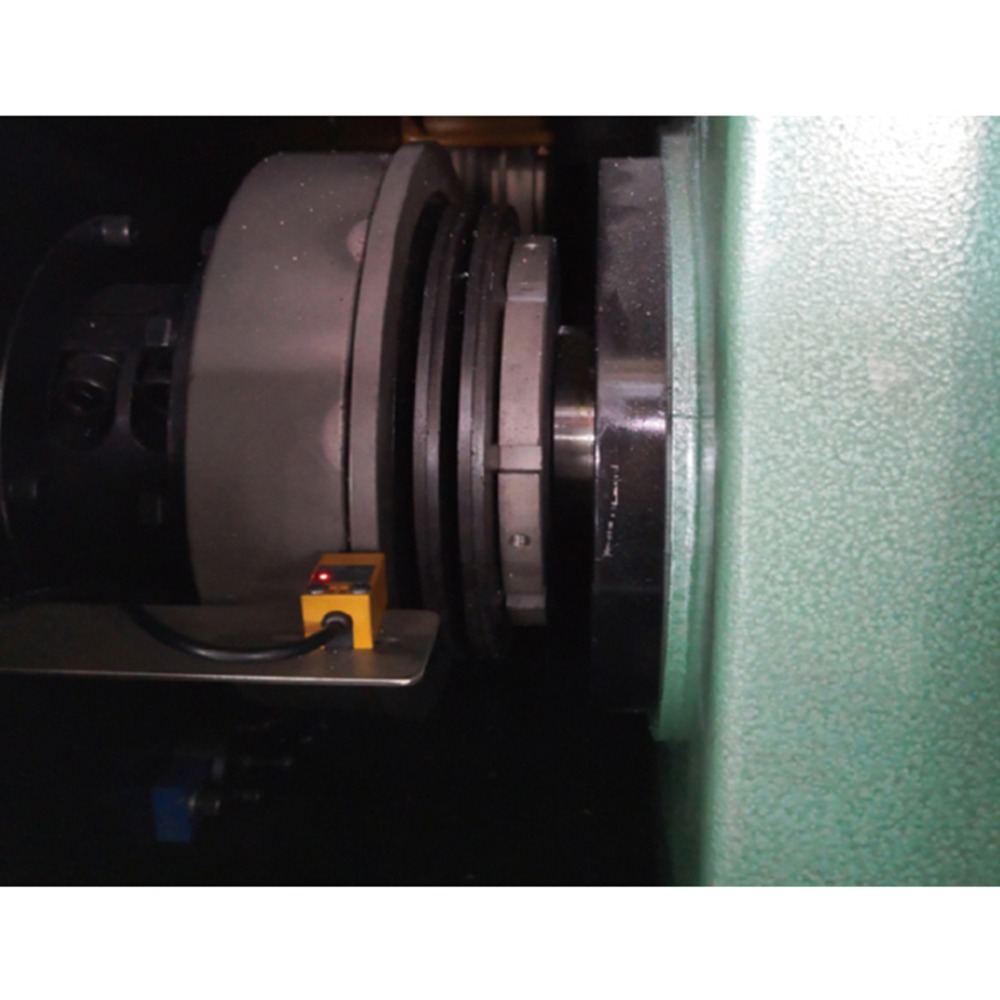

Torque Limiter can highly protect the Gripper bar, help the operator and improve the machine life.

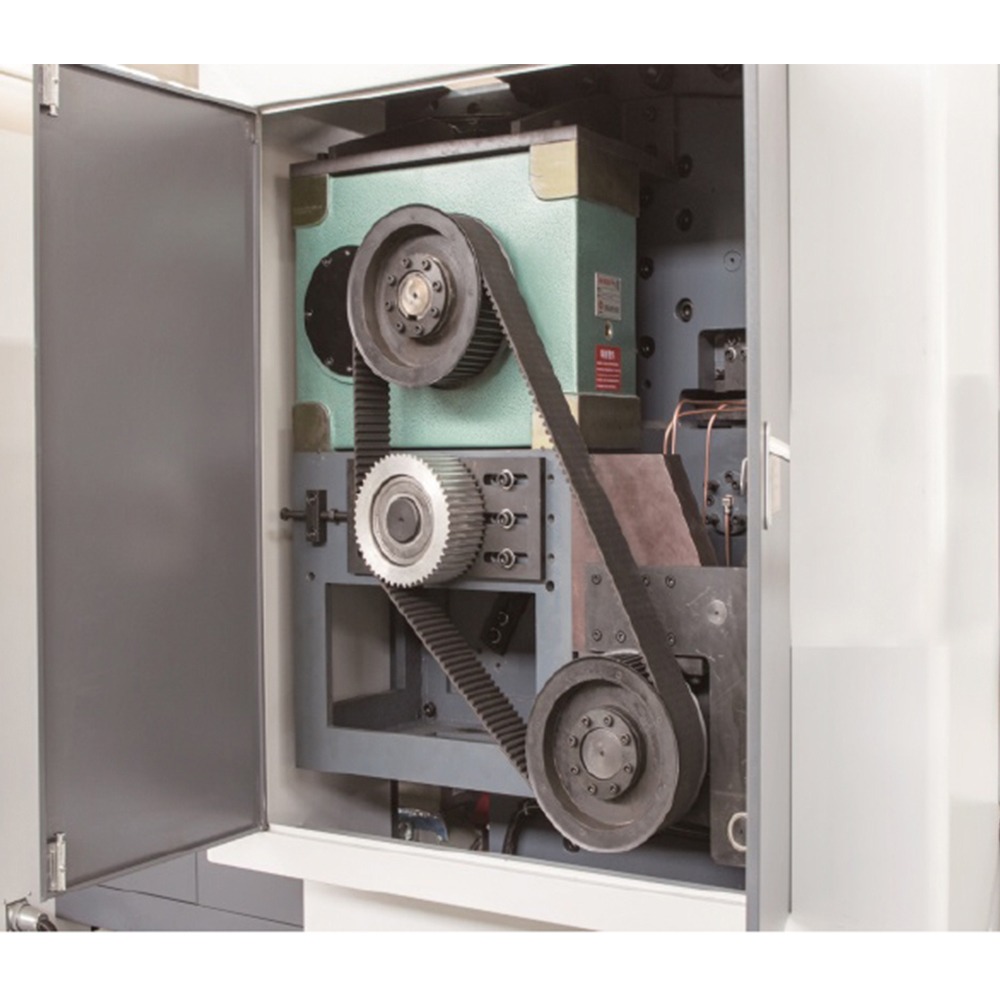

With the gear type synchronous belt drive stable, safe, no noise and long life.

Specificattons

Model	LKS800T
Max. sheet size	810x610mm
Min. sheet size	320x230mm
Max.die cutting size	790x590mm
Max. working speed	6000 s/h
Electrical power	48kw
Paper range	Cardboard100-2000g/Corrugated<4mm
Max.working pressure	250T
Machine weight	12.5T
Heating zone number	12
No of foil rollers	3 longitudinal / 2 transversal
Vertical:Max, foil width	750mm
Min. foil width	25mm
Max.length of pull foil	600mm
Max. pull foil roll diameter	φ200mm
Horizontal: Max. foil width	540mm
Min foil width	25mm
Max.length of pull foil	800mm
Min .pull foil roll diameter	φ220mm
Machine dimension B	6400x3830x2200mm
