Semi Automatic Die Cutting Machine

Product Description

Model: Semi Automatic Die Cuttier Machine

Application:

Semi automatic die cuttier machine is mainly used for die-cutting, creasing and cold pressing embossing of cartons, cartons and trademarks in packaging and decoration industries.

Features:

Semi automatic die cuttier machine realizes automation from die cutting to delivery, and has a non-stop sampling mechanism. It also has the characteristics of high die cutting pressure, high registration accuracy, convenient operation, safety and reliability.

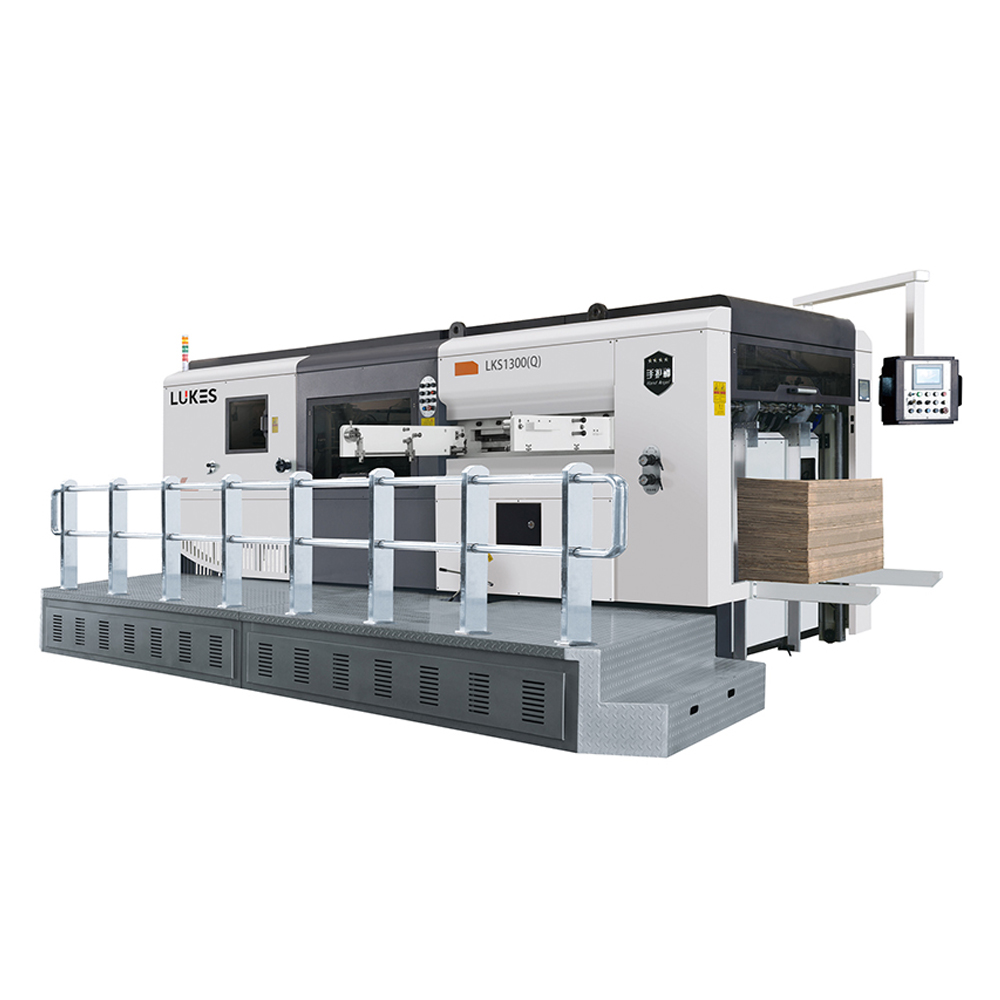

semi automatic die cuttier machine

Videos

Components

Feeding section

feeding by manual is good for warping corrugated . gripper bar will takes paper to die cutting section to achieved feed

die cutting section

safety door and die chase safety locking system to ensure safe operation.

complete lost sheet control throughout the entire machine

centerline system compatible to centerline for quick change over and short set up time.

air cushion underneath the cutting plate for easy cutting plate floating in and out.

delivery section

Non-stop automatic delivery system

Delivery sheets quantity can be preset

delivery can automatic adjustment based on the delivery when working

Specificattons

Model
LKS1450
LKS1620
LKS1850
LKS2100
Max. sheet Size
1480x1080mm
1650x1210mm
1880x1420mm
2100X1500mm
Min. sheet Size
550x480mm
650x550mm
650x550mm
800x600mm
Max .Die-Cutting Size
1450x1050mm
1620x1190mm
1850x1400mm
2070x1480mm
Max. Mechanical Speed
4200s/h
4000s/h
3500s/h
3000s/h
Min. gripper waste
8&9mm
8&9mm
10mm
12mm
cutting rule height
23.8mm
23.8mm
23.8mm
23.8mm
electrical power
20.5 kw
20.5 kw
24kw
27kw
die cutting precision
± 0.5mm
± 0.5mm
± 0.5mm
± 0.5mm
Total Power
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
380V.50HZ, 3-Phase
Max .Die-Cutting Pressure
300t
350t
400t
500tons
Gross Weight
17.5t
21.5t
26tons
28tons
pressure adjusting range
± 1mm
± 1mm
± 1mm
± 1mm
Stock range
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
corrugated board 1-8mm,cardboard 350g above
Inner chase size
1480x1080mm
1646x1220mm
1890x1430mm
2110x1510mm
dimension
6330x4860x2350mm
6220x5155x2550mm
7640x5280x2600mm
8000x5800x2700mm
