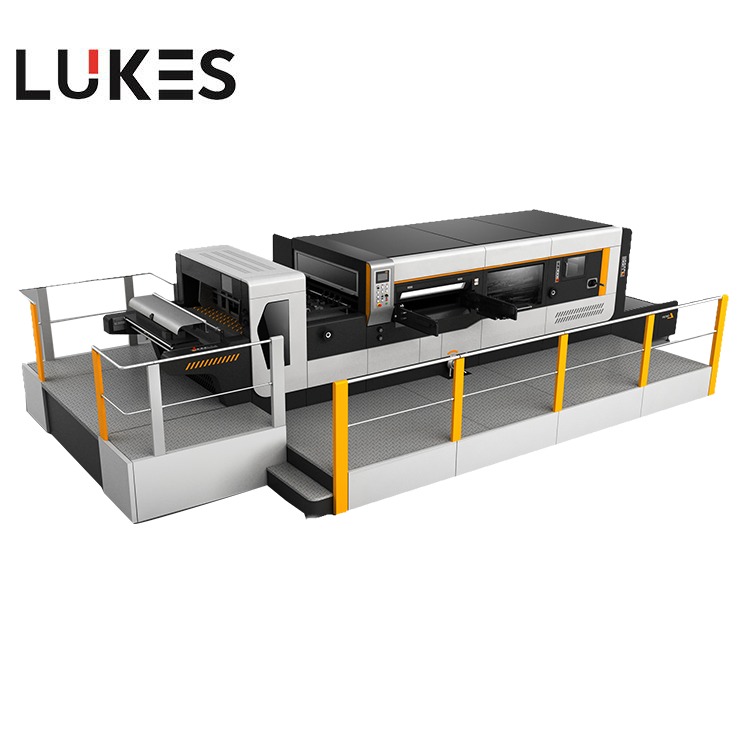

LKS1300B Automatic Die Cutting Machine

Feed Section

◆New technology polyurethane wheel surface with grid lifer ensure smooth feeding and accurate alignment even warped board.

◆Double servo motor control high precision feed.

Feed Table

◆ Servo driven with adjustable slow down ensuring sheet arrives at entry to die cutter under control
◆ Front gauge no stop back and forth adjustable to accommodate variation in gripper margin

Die cutting section

◆ Quality precision-made die cutting unit with built in overload mechanism. Easy loading and removal of chase and plate, centralized positioning for speedy make ready.
◆ New technology of driving index with large motion angle to allow gripper bar gentle start and stop, less and smaller nicks required to achieve higher productivity.

Stripping section

◆ Double action movement with upper and lower stripping frames.
◆ Male and female boards inserted subject to desired job. Right, left, rear and internal stripping function to optimise stripping.
◆ Centralised positioning to reduce downtime on stripping set-up.

Delivery section

◆ Standard pallet style delivery unit presented in a neat stack allowing simple extraction of die cut blanks.
◆ Optional non-top batch counter collector to increase production and work-flow Why choose us.
