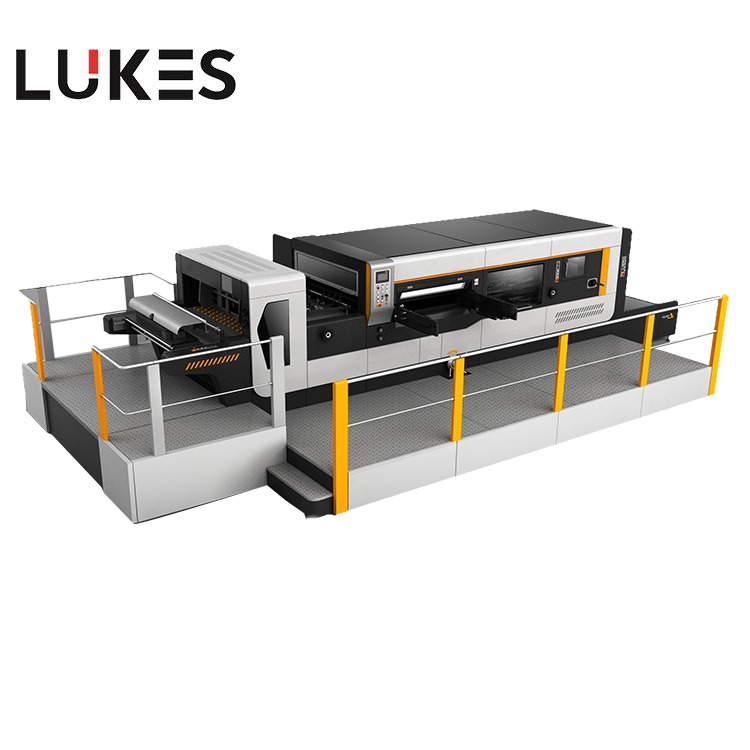

LKS1450B Automatic Die Cutting Machine

Product Description

The LKS1450B industrial automatic die cutting machine is currently one of the best-selling styles.

The industrial automatic die cutting machine cuts corrugated paper or other paper into various types of professional machines.

In this step, the paper will be cut and creasing using a die cutter before folding after printing.

This equipment adopts a chain design and is mainly composed of five parts: feed Section, feed table, die cutting section, Stripping section, Delicery section.

The maximum die cutting size is 1480*1080mm, and the fastest speed can reach 4500 sheets per hour.

industrial-automatic-die-cutting-machine-1

contact

Components

Feed Section

◆New technology polyurethane wheel surface with grid lifer ensure smooth feeding and accurate alignment even warped board.

◆Double servo motor control high precision feed.

Feed Table

◆ Servo driven with adjustable slow down ensuring sheet arrives at entry to die cutter under control
◆ Front gauge no stop back and forth adjustable to accommodate variation in gripper margin

Die cutting section

◆ Quality precision-made die cutting unit with built in overload mechanism. Easy loading and removal of chase and plate, centralized positioning for speedy make ready.
◆ New technology of driving index with large motion angle to allow gripper bar gentle start and stop, less and smaller nicks required to achieve higher productivity.

Stripping section

◆ Double action movement with upper and lower stripping frames.
◆ Male and female boards inserted subject to desired job. Right, left, rear and internal stripping function to optimise stripping.
◆ Centralised positioning to reduce downtime on stripping set-up.

Delivery section

◆ Standard pallet style delivery unit presented in a neat stack allowing simple extraction of die cut blanks.
◆ Optional non-top batch counter collector to increase production and work-flow Why choose us.

Specificattons

Max.sheet Size:
Min.sheet Size:
Max.Die-Cutting Size:
Max.Mechanical Speed:
Electrical power:
Die cutting precision:
Total power:
Max.die cutting pressure:
Gross weight:
Stock range:
Inner chase size:
Dimension:

1480*1080mm
550*480mm
1450*1080mm
4500s/h
32.7kw
±0.5mm
380V.50HZ, 3-Phase
300T
23.5T
E.B.C.A and AB flute corrugated board
1480*1104mm
9921*5176*2627mm
